Description
Boost your catch with TruEcho CHIRP™, Furuno's revolutionary broadband, combining multi-frequency features utilizing multiple transducers!
DOWNLOAD BROCHURE DOWNLOAD OPERATORS MANUAL

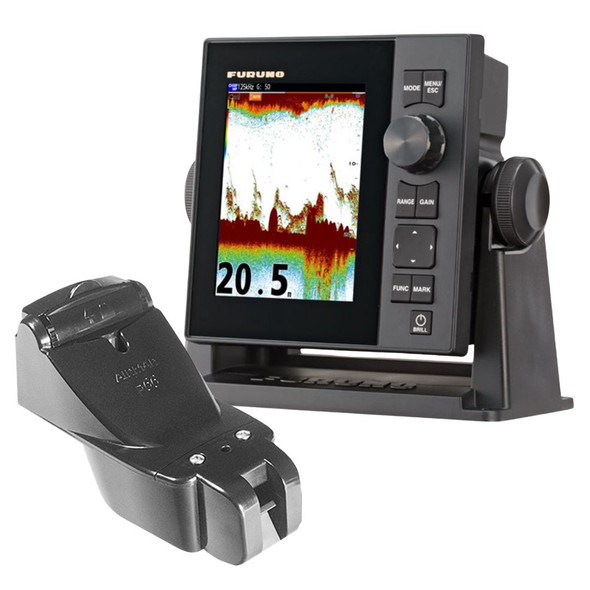

The FCV-600 combines the power of TruEcho CHIRP™ with a host of revolutionary identification technologies to clearly distinguish fish from other structures, such as the seabed or reefs. This helps you fish more effectively than ever before.
Features
TruEcho CHIRP™
Traditional CW (Continuous Wave) Fish Finders transmit a signal composed of a single frequency, while CHIRP Fish Finders transmit a linear frequencymodulated signal - a wave with a frequency that increases over time. The FCV-600 and FCV-800 can utilize a broadband transducer to transmit across a spectrum of frequencies, resulting in better target resolution. With Furuno’s TruEcho CHIRP™, you’ll see greater detail and target separation for baitfish, game fish, and structure.
COMBINE CW & TruEcho CHIRP™ FOR ADDED CAPABILITIES
By combining CHIRP and traditional CW transducers*, you’ll see crisp CHIRP echoes on the screen while the ACCU-FISH™ and Bottom Discrimination functions from your CW transducer work in the background, overlaying important information on your CHIRP returns. You will be able to see fish targets, fish size assessment, fish depth, and bottom composition.** Up to three frequencies can be saved as preset selections.
COLOR EXPANSION
With Color Range Expansion, the range of identifiable echoes is expanded so you can intuitively identify bottom fish from the seabed. Reefs, structure, and fish near the seabed are shown in slightly separated colors, making it easy to tell structure from fish at a glance.
WIRELESS CONNECTIVITY
A second display can be installed to show the echoes and nav data from the FCV-600 and FCV-800 via wireless network, so you can monitor the underwater situation from the stern or bow while fishing.
NEW Colors
Sunlight and Yellow color schemes offer enhanced visibility under bright sunlight conditions.
Specifications
DISPLAY
- Display unit - 5.7" TFT color LCD
- Pixel number - VGA 480 x 640
FISH FINDER
- Frequency
- CW: 50 and 200 kHz
CHIRP: 40 to 225 kHz - Transducer
- 300 W / 600 W
- Range Scale
- 2 - 1200 m
- Pulselength & PRR
- 0.04 to 3.0 ms, Max 3,000 pulse/min
- Display Mode
- Single Frequency, Dual-Frequency, Zoom, Nav Data, A-Scope, Marker Zoom, Bottom-Lock, Bottom Discrimination, Color Expand, ACCU-FISH™, RezBoost™
- ACCU-FISH
- Bottom Discrimination
OTHERS
- Waterproofing - IP56
- Power Supply - 12-24 VDC: 1.6 - 0.8 A

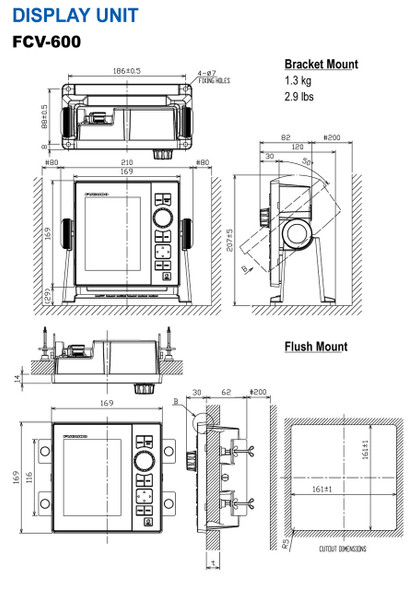

- Size - 210 (W) x 198 (H) x 120 (D) mm
- Weight 1.3 kg (w/Bracket Mount)
Options
- CW TRANSDUCER (600 W)520-5PSD, 520-5MSD, 520-PLD, 525-5PWD, 525STID-PWD, 525STID-MSD, 525T-PWD, 525T-BSD, 525T-LTD/12, 525T-LTD/20, SS60-SLTD/12, SS60-SLTD/20
- CHIRP TRANSDUCER (Single Frequency: 300 W)B75L, B150M, SS75L, TM150M
- CHIRP TRANSDUCER (Single Frequency: 600 W)B75H, B75M, B785M, SS75H, SS75M, TM165HW
- SPEED/TEMPERATURE SENSORST-02MSB, ST-02PSB(USA), T-04MSB, T-04MTB
Connector Kit for Connection of Speed & Temperature Sensor or Temperature Sensor - Power Cable
- FLUSH MOUNT KITOP02-89 - FCV-600
