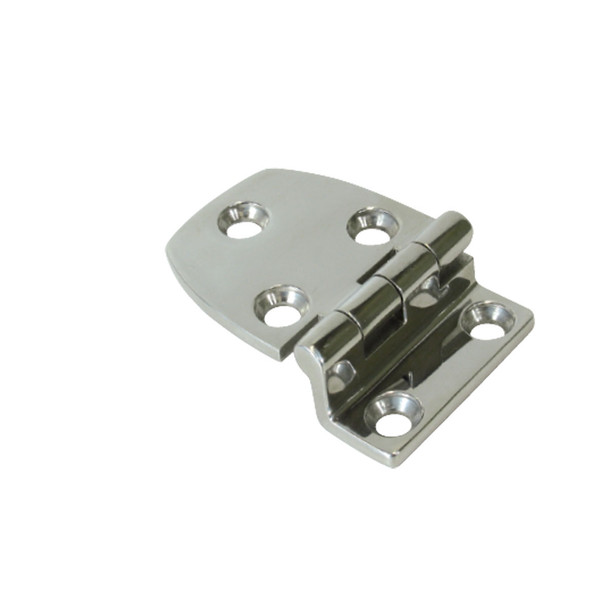

Marine Town Cast Stainess Steel Hinge Stainess Steel Offset 50X38mm
This range of hinges combine the durability of cast 316 grade stainless steel construction with low profile unobstructive design. The plates are only 3mm thick, yet have been tested to a break load of 1200kg. Hinge pins are not visible. They are welded at both ends and highly polished to blend with the hinge barrel. Because the pin is locked to one base plate and hinge barrel joint gap is kept to less than 0.2mm, there is minimal hinge play and rattle with engine vibration. 193471 has a flush service. Sold as a pair.
|
Part Number
|
Length Flat mm
|
Width mm
|
Depth mm
|
Split mm
|
Mount Screws mm
|
Off Set mm
|
|---|---|---|---|---|---|---|
| 193460-BLA | 50mm | 38mm | 17mm | 15/35mm | 4 c/s | 10mm |
