Description

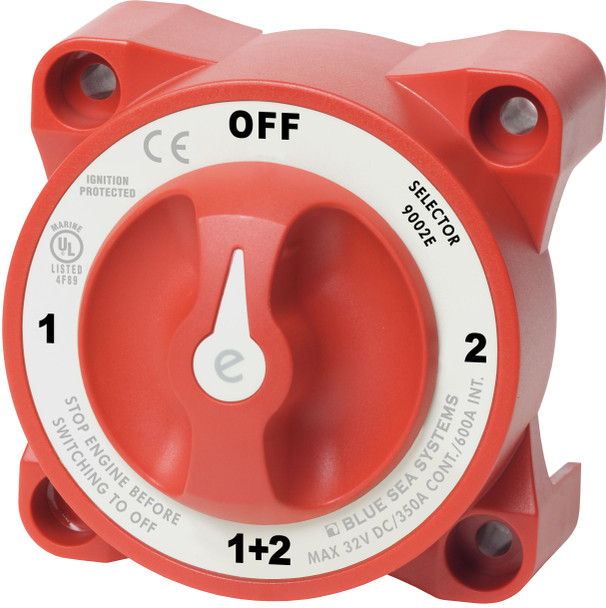

Blue Sea e-Series Battery Switch Selector with AFD
Switches isolated battery banks to all loads or combines battery banks to all loads
- Make-before-break contact design allows switching between battery banks without power interruption
- Ignition protected - safe for installation aboard gasoline powered boats
- Case design allows surface or rear panel mounting
- Includes AFD (Alternator Field Disconnect)
| Switch Type | Selector 4 Position |
| Color | Red |
| Switch Positions | 4 |
| Battery Combine | Yes |
| Alternator Field Disconnect | Yes |
| Maximum Voltage | 32V DC |
| Terminal Stud Torque | 140 in-lb (15.82 Nm) |
| Continuous Rating | 350A |
| Intermittent Rating | 600A (5 min) |
| Cranking Rating 30 sec | 1200A |
| Battery Inputs | 2 |
| Cable Clearance For 4/0 AWG Cables | 1.10in (27.94 mm) |
| Cable Size to Meet Ratings | 4/0 AWG (120mm²) |
| Mounting Holes | Accept 1/4" (M6) Screw |
| Stud Material | Tinned Copper |
| Terminal Stud Size | 3/8" - 16 (M10) |
| Weight | 1.15lb (0.52 kg) |
