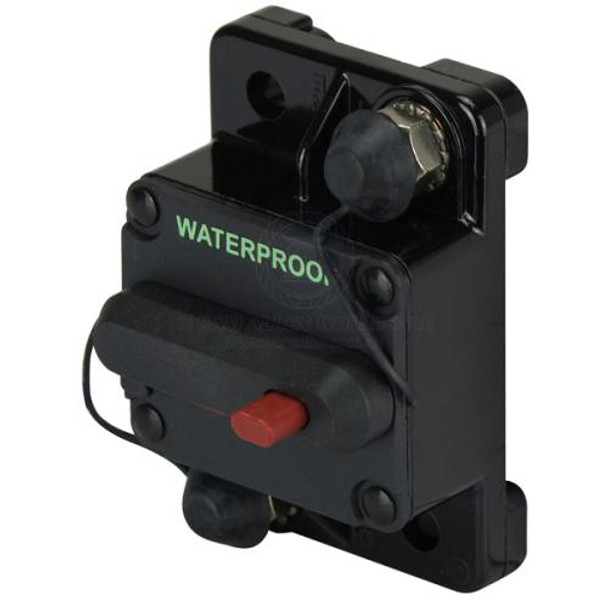

HD Circuit Breaker 60Amp 12-42V IP67 Surface Mount
The HD Circuit Breaker 60Amp 12-42V IP67 Surface Mount is designed for high-amp applications in marine and engine compartments. With IP67 rating, it provides robust protection against harsh environments. This thermal circuit breaker features manual reset functionality, power cut-off in case of faults, and ignition protection to ensure safety during operation.
##features##
Features
- IP67 rated for use in engine compartments and marine environments.
- High-amp thermal circuit breaker with manual reset.
- Instant power cut-off when a fault is detected for safety.
- Operating temperature range: -32°C to +82°C.
- Ignition protected to prevent electrical fires in automotive and marine systems.
- Durable thermoset plastic housing for long-lasting performance.
##features##
##specifications##
Specifications
| Specification | Model |
|---|---|
| Part No. | 302255 |
| Volts | 6–48V |
| Mount Type | Surface |
| Amps | 60 |

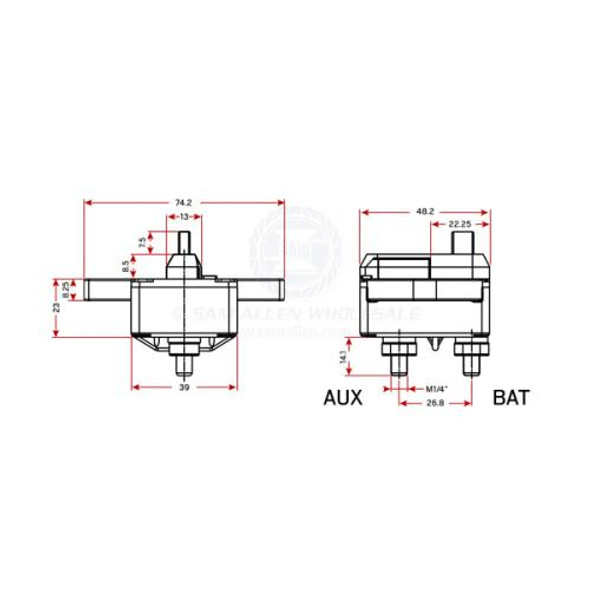

| Dimensions | 48mm x 74mm x 45mm |
| Mounting Screws | M6-1/4 inch |
| Unit Qty | 1 |
