Description

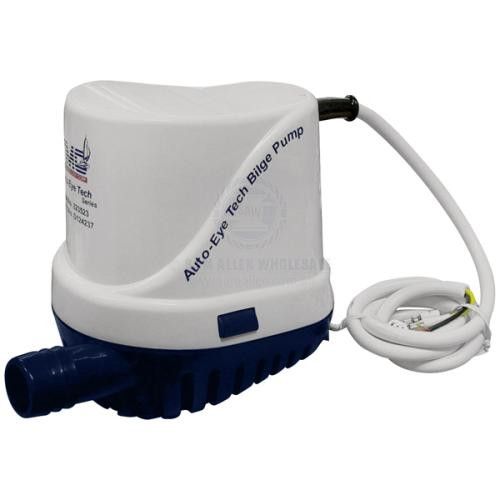

Pumps - Bilge - Auto Eye - TMC
The TMC Auto Eye Series Bilge Pumps provide a fully automatic pumping solution without the need for a separate float switch. Designed with a built-in electronic controlled reed sensor system, these pumps only activate when needed, conserving power and extending service life. Built from high-impact durable plastic and equipped with a stainless steel shaft for rust and corrosion protection, these pumps are ideal for demanding marine environments. With quick-release base strainers for easy cleaning and CE certification for safety, the TMC Auto Eye pumps deliver dependable performance and peace of mind.
## Features##
Features
- Auto Eye series fully automatic bilge pump
- Efficient long-life motor with stainless steel shaft for rust and corrosion protection
- Durable high-impact plastic housing
- Built-in electronic controlled reed sensor system
- No separate float switch required
- Consumes no power until pump is activated
- Quick-release base strainer for easy maintenance
- CE Certified: Ignition Protected ISO 8846 & Bilge Pump Standard ISO 8849
## Features##
## Specifications##
| Specifications Chart | ||
| Part No. | 23198-SAM | 23199-SAM |
| Series | 1000 | 1500 |
| Volts | 12V | 12V |
| Amps | 4.5A | 9A |
| Fuse | 6A | 12A |
| Head 0m | 1000GPH (3785 LPH) | 1500GPH (5678 LPH) |
| Head 1m | 800GPH (3028 LPH) | 1250GPH (4731 LPH) |
| Max. Head | 4m | 4m |
| Outlet Dia. | 1-1/8 inch | 1-1/8 inch |
| Dimensions (A x B x C) | 130mm x 96mm x 165mm | 150mm x 108mm x 191mm |
| Unit Qty | 1 | 1 |
| Note | Ensure wiring connections remain above water level on all submersible bilge pumps and float switches. | |
