Description

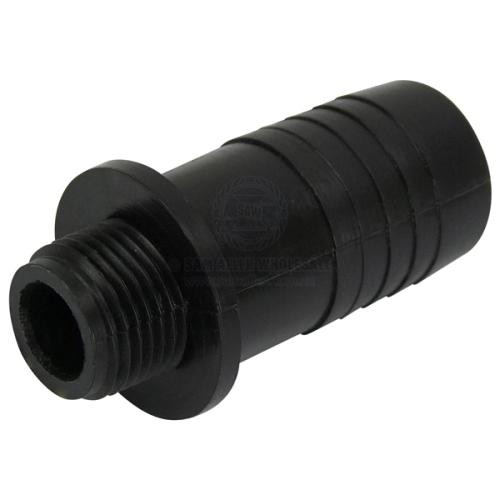

Hose Tail BSP Male Reducer Polypropylene
PLEASE NOTE: IMAGE IS EXAMPLE ONLY AND NOT SAME FOR EVERY PART
• UV and chemical resistance.
• Long tail and thick walls.
• Polypropylene (PP).
• Operating Temp: 0°C to 120°C.
• Pressure: 120 PSI.
| Specification Chart | |||||||||||||||||
| Part No. | 45600-SAM | 45601-SAM | 45602-SAM | 45604-SAM | 45605-SAM | 45607-SAM | 45608-SAM | 45609-SAM | 45610-SAM | 45613-SAM | 45614-SAM | 45615-SAM | 45616-SAM | 45618-SAM | 45619-SAM | 45620-SAM | 45621-SAM |
| Thread | 1/2 inch | 1/2 inch | 1/2 inch | 3/4 inch | 3/4 inch | 1 inch | 1 inch | 1 inch | 1 inch | 1-1/4 inch | 1-1/4 inch | 1-1/4 inch | 1-1/4 inch | 1-1/2 inch | 1-1/2 inch | 1-1/2 inch | 1-1/2 inch |
| Hose Tail Dia. | 3/4 inch | 1 inch | 1-1/4 inch | 1 inch | 1-1/4 inch | 5/8 inch | 3/4 inch | 1-1/4 inch | 1-1/2 inch | 3/4 inch | 1 inch | 1-1/2 inch | 2 inch | 3/4 inch | 1 inch | 1-1/4 inch | 2 inch |
