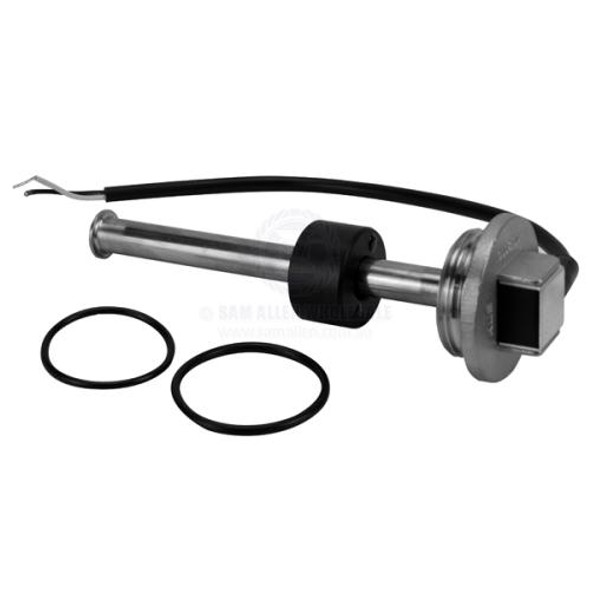

S3 1-1/4" BSP Sender 100mm 240-33

The S3 1-1/4" BSP Sender 100mm 240–33 provides accurate tank level monitoring for marine and industrial applications. Built with 316G stainless steel, it offers long service life, vibration resistance, and reliable signal output.

##features##

Features

• Magnetic field technology activates reed on-off switch for enhanced durability.
• 316G stainless steel body for superior corrosion resistance.
• 1-1/4 inch BSP twist-on thread assembly for secure and easy installation.
• Output signal range: 240–33 Ohms.
• Operating temperature: -40°C to +85°C.
• IP67 protection rating for resistance against water and dust.
• Includes mounting O-rings (38mm x 2.6mm and 43mm x 3.5mm).
• 250mm tinned wire with PVC cover for reliable electrical connection.
• 33mm float diameter for precise measurement.
