Description
Scanstrut ATMOS 12V Integrated Air Station
Designed to maximize quality time on the water
ATMOS, by Scanstrut, will revolutionize your family’s boating experience. This beautifully designed, in-built air station is here to maximize quality time on the water.
At the push of a button, ATMOS is ready to inflate your paddleboards, towables and more: simply set the target pressure and let ATMOS do all the hard work.
Utilizing Scanstrut’s outdoor technology DNA, this is waterproof on-board air that’s engineered to thrive in the harsh marine environment.
Ignition Protection - ISO 8846 and SAE J1171.
ATMOS SC-AOB-A2 has successfully undergone all required tests and complies with the rigorous standard for Ignition Protection. This certification signifies that ATMOS can be safely installed in any location on a boat or vehicle.
## In The Box##
In The Box
2.5M (8ft) Hose
or optional 3.6M (12ft) hose
When inflating a paddleboard on a boat, the most stable location for the pump is usually on the deck or another flat surface. However, this location may not be close enough to the paddleboard to allow for easy inflation if the hose is too short. A longer hose can help to bridge this distance, allowing you to move the pump away.

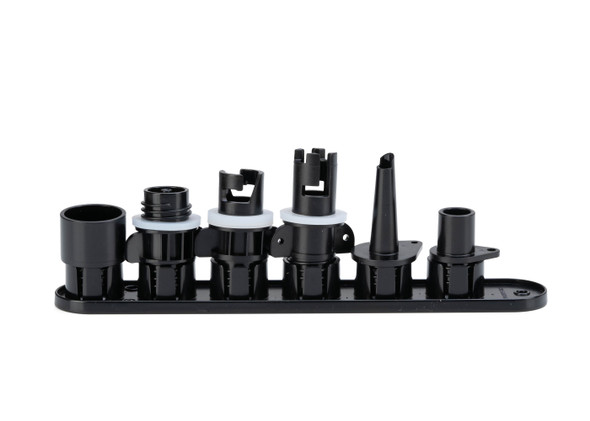

6 x Hose Attachments
Supplied with 6 different adapters including; Boston Valve, C7 Valve, H3/HR Valve, Pinch Valves, and 805 Valve. You have everything you need to inflate and deflate your toys with ease, no matter what type of valve it has.
Sun Cover
Supplied with a heavy-duty sun cover, ATMOS is protected against the long-term damaging effects of the sun, salt, and other elements. It comes fitted as standard with a black cover, with white available as an accessory. With our sun cover, you'll be able to keep your ATMOS looking its best for longer.
## In The Box##
## Specifications##
| The Stats | |
|---|---|
| Ambient Operating Temperature | -20º to +50 ºC |
| Input Voltage | 12V Battery System (11.5 – 14V) |
| Maximum Current Draw | 12A (140W) |
| Maximum Pressure | 20 PSI / 1.37 BAR |
| Max Volume of Airflow (0–1 PSI) | 350 LPM / 12.3 CFM |
| Max Volume of Airflow (1–20 PSI) | 70 LPM / 2.5 CFM |
| Standby Power Draw | 0.1W Max |
| Two-Stage Pump | Stage 1 = 0–1 PSIStage 2 = 1.1–20 PSI |
| Environment | |
|---|---|
| Environmental Protection | Conformal coated electronics and PCB |
| Brushless Technology | High performance brushless motors designed for the marine environment |
| Protection | Reverse polarity, short-circuit, under voltage, overload, over temperature |
| Certifications | CE, ROHS, UN ECE R10, UKCA |
| Cable Length | 500mm (20”) 1.5mm² / 16 AWG |
| Waterproof Rating | IPX6 front and rear (door closed) |
| Air Flow | In and out of front of unit only; rear of unit sealed |
| Safety | |
|---|---|
| Max Run Time | 25 minutes (3 SUPs) |
| Under Protection | Soft motor start |
| Standby Mode | No activity auto shut-off – 5 mins |
| Max Pressure Output | 20 PSI / 1.4 BAR |
| Warranty | 2 Year warranty |
| Auto Shut-Off | At target pressure |
| Ambient Operating Temperature | -20º to +50 ºC |
| Ignition Protection | ATMOS SC-AOB-A2 meets ISO 8846 and SAE J1171 test standard for Ignition Protection |
