Description

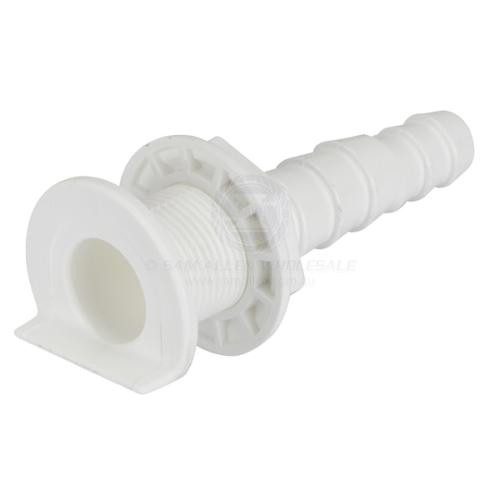

Skin Fitting - L-Head
Features
• Low profile L shaped head is designed for side mounted drain applications to remove the maximum of residual water possible.
• Commonly used in bait tank, fish boxes, refrigerated compartments and air-conditioning unit housings.
• Maximum mounting thickness 30mm.
## Specifications##
| Specifications Chart | |
| Part No. | 45471-SAM |
| Length | 134mm |
| Width | 58mm |
| Height | 58mm |
| Weight | 50g |
| Hose I.D. | 25 / 20mm |
| Mount | Dia. 33mm |
| Volume | 450cm3 |
| Unit Qty | 1 |
