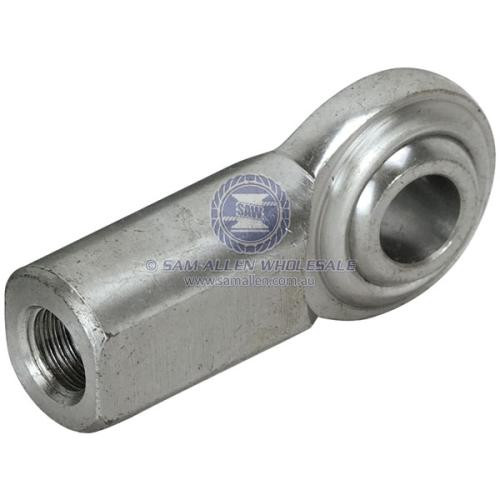

Tie Bar Rod Ends – Stainless Steel
Ultraflex stainless steel tie bar rod ends are engineered for strength, corrosion resistance, and smooth mechanical operation in marine steering systems. Ideal for connecting tie bars in dual engine or twin rudder setups, these rod ends feature durable materials and precision design to ensure reliable performance.
## Features##
Features
- Ball constructed from hardened 440C stainless steel
- Body made from corrosion-resistant 304 stainless steel
- Precision machined for marine-grade strength and durability
- Available in multiple thread sizes to suit a variety of applications
- Ideal for use in tie bar steering and mechanical linkage systems
## Features##
## Specifications##
Specifications
| Part No. | Description | Thread | A | B | C | D |
|---|---|---|---|---|---|---|
| 83970 | 3/8 UNF Stainless Steel Rod End | 3/8 inch UNF | 41.28mm | 3/8 inch | 17.45mm | 25.4mm |
| 83971 | 1/2 UNF Stainless Steel Rod End | 1/2 inch UNF | 53.98mm | 1/2 inch | 22.22mm | 33.32mm |
| 83972 | 5/8 UNF Stainless Steel Rod End | 5/8 inch UNF | 63.5mm | 5/8 inch | 25.4mm | 38.1mm |
| 83973 | 3/4 UNF Stainless Steel Rod End | 3/4 inch UNF | 73.03mm | 3/4 inch | 28.58mm | 44.45mm |
Included in Box
- 1x Stainless Steel Rod End (Selected Size)
- Protective packaging
