Description

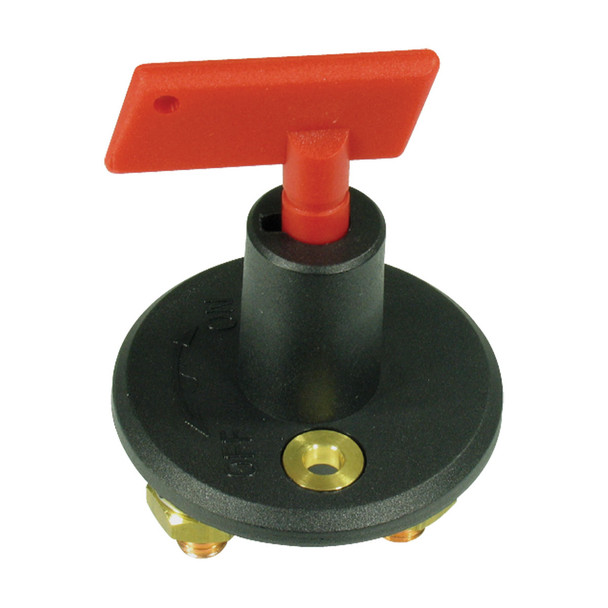

Battery Switch
Simple key type, two position switch with insulated black plastic housing, red removable plastic key and all brass electrical contacts. Suitable for 12 or 24 volt. Unit may be surface mounted or partially recessed behind the panel with just the stem protruding. Engines must be shut down before turning to ‘off’ position. Rated maximum load, 500 amps for ten seconds. Overall length includes key.
Accessories
114309 Spare key only (without boot)
## Specifications##
| Specifications Chart | ||||||
|---|---|---|---|---|---|---|
|
BLA Code
|
Base Dia. mm
|
Overall Length mm
|
Stem Length mm
|
Stem Dia. mm
|
Mount Screws mm
|
Terminal Stud mm
|
| 114308 | 65 | 102 | 33 | 23 | 6 r/h | 10 |
