Description

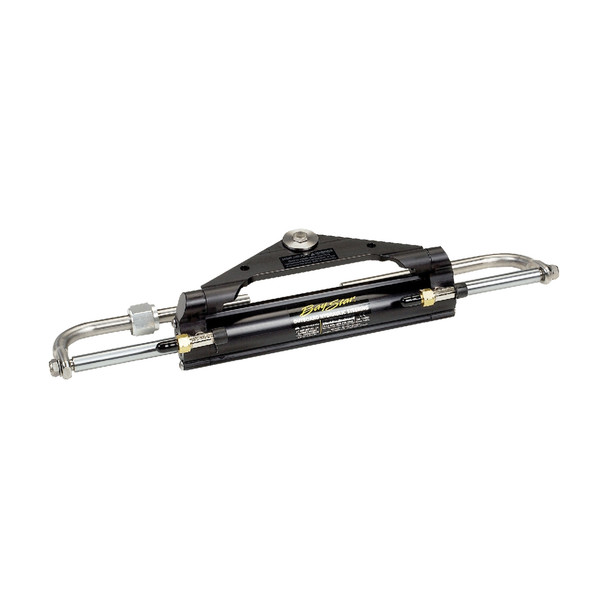

BAYSTAR OMC/Suzuki Front Mount HC4658-3
Dometic BayStar Plus outboard hydraulic steering has been developed by SeaStar Solutions to suit most single outboard driven vessels up to 150HP.
Features
• Patented No FeedBack steering lock valves
• Super low friction helm for smooth comfortable steering
• 5.2 turns lock to lock
• Balanced design that fits most splashwells provides full engine movement
• Cylinders to suit most outboards
* Not recommended for Mercury 150HP Optimax DFI
|
Part Number
|
SeaStar Solutions Part No.
|
Cylinder Model
|
Bore in
|
Bore mm
|
Shaft Dia. In
|
Shaft Dia. mm
|
Stroke in
|
Stroke mm
|
Volume cc
|
Volume in3
|
Torque in-lb
|
Torque kg-mm
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 291071-BLA | HC4645H | Front Mount | 1.25 | 31.7 | 0.625 | 15.9 | 8 | 203 | 118.6 | 7.2 | N/A | N/A |
| 291072-BLA | HC4670H | Side Mount R/S Side Mount P/S | 1.25 | 31.7 | 0.5 | 12.7 | 8 | 203 | 135.2 | 8.3 | N/A | N/A |
| 291073-BLA | HC4647H | Front Mount | 1.25 | 31.7 | 0.625 | 15.9 | 8 | 203 | 118.6 | 7.2 | N/A | N/A |
| 291074-BLA | HC4648H | Front Mount | 1.25 | 31.7 | 0.625 | 15.9 | 8 | 203 | 118.6 | 7.2 | N/A | N/A |
| 291075-BLA | HC4658H | Front Mount | 1.25 | 31.7 | 0.625 | 15.9 | 8 | 203 | 118.6 | 7.2 | N/A | N/A |
| 291077-BLA | HC4460H | Inboard ATM | 1.25 | 31.7 | 0.5 | 12.7 | 6.25 | 159 | 105 | 6.4 | 4513 | 52 |
