Description

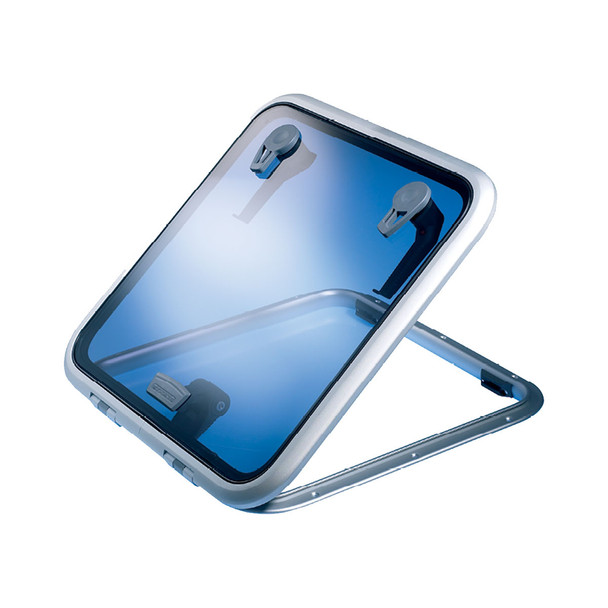

Lewmar Hatch - Low Profile Friction Hinge Silver
The Low Profile hatch range Features a snag free soft styling which presents a sleek modern look. The range is ideal for use on a wide range of power craft and yachts. The smaller ventilation hatches are ideally suited to any deck location over toilets or galleys. The larger Low Profile hatch range can be used as a foredeck hatch on small to mid size power and sailboats. The hatch also Features Lewmar’s unique sealing system allowing easy acrylic replacement.
Features
• Size 30 and above feature outside handles
• Ability to quickly and easily replace acrylic lenses
• Ability to lock the hatch fully closed or in the vented position
• Friction hinges hold the lid open in any position up to 95 degrees (optional extra not included as standard)
• Anodised aluminium frame for corrosion resistance
• Curved upper frame for strength as well as modern styling
• CE Approved for Area 2A
• Available in round and D-Hatch configuration
|
Part Number
|
Size
|
Outside XxY LxW mm
|
Cut Out X1 x Y1 LxW mm
|
Radii R MM
|
Radii R mm
|
Height Z mm
|
Acrylic mm
|
Internal Trim Kit Colour
|
|---|---|---|---|---|---|---|---|---|
| 170050-BLA | 00 | 281 x 281 | 211 x 211 | 72.5 | 42.5 | 25 | 8 | White |
| 170052-BLA | 03 | 246 x 301 | 176 x 231 | 72.5 | 42.5 | 25 | 8 | White |
| 170054-BLA | 10 | 330 x 330 | 260 x 260 | 72.5 | 42.5 | 25 | 8 | White |
| 170058-BLA | 20 | 272 x 417 | 202 x 347 | 72.5 | 42.5 | 25 | 8 | White |
| 170060-BLA | 30 | 397 x 527 | 327 x 457 | 72.5 | 42.5 | 25 | 8 | White |
| 170064-BLA | 40 | 491 x 491 | 421 x 421 | 72.5 | 42.5 | 25 | 8 | White |
| 170068-BLA | 41 | 246 x 491 | 176 x 421 | 72.5 | 42.5 | 25 | 8 | White |
| 170070-BLA | 44 | 512 x 512 | 442 x 442 | 72.5 | 42.5 | 25 | 8 | White |
| 170074-BLA | 50 | 447 x 577 | 377 x 507 | 72.5 | 42.5 | 25 | 8 | White |
| 170078-BLA | 54 | 462 x 577 | 392 x 507 | 72.5 | 42.5 | 25 | 8 | White |
| 170082-BLA | 60 | 577 x 577 | 507 x 507 | 72.5 | 42.5 | 25 | 10 | White |
| 170160-BLA | 65 | 560 x 675 x 560 | see drawing above | 72.5 | 42.5 | 25 | 10 | White |
N.B. Insect screens can only be used with trim kits. Trims also available in Ivory.
