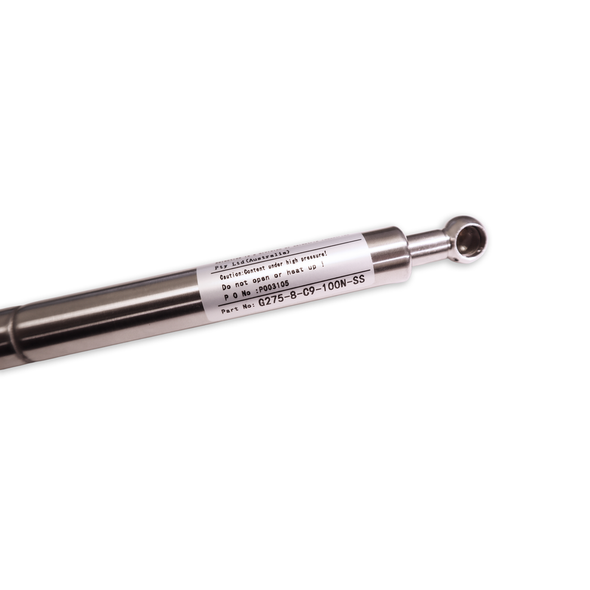

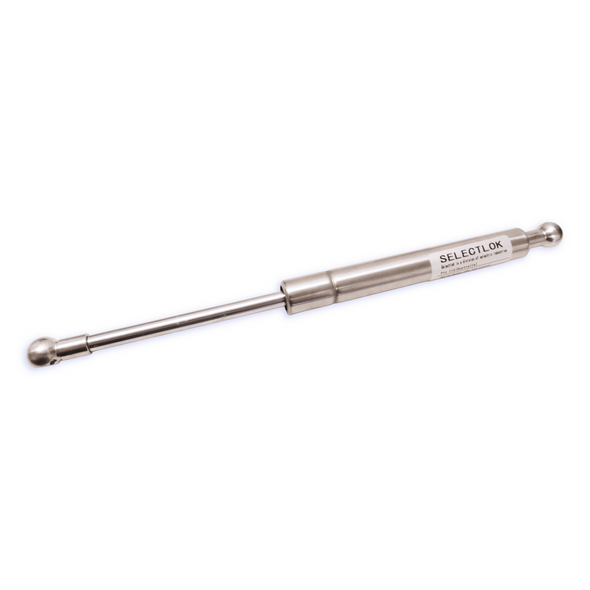

Selectlok's Premium Range: Stainless Steel Gas Struts and Accessories offer mechanical assistance for lifting and support across various medium to heavy-duty applications.

Whether you need premium quality stainless steel gas struts for use in marine, RV, food-grade van/trucks, automotive and industrial purposes, Selectlok Australia has you covered, with our expertise and quality products, we'll ensure that you find the perfect gas struts for your needs.

Features:

• 510mm extended length
• Duty range: Medium
• Premium stainless steel piston shaft and cylinder body
• Each strut comes standard with 2x quick-fit ends and ball studs (steel)
• Available individually or in box quantities



##Dimensions Material and Finish##

Dimensions, Materials And Finish

Piston Shaft and Cylinder

• Lengths - 210mm stroke, 510mm extended
• Diameters - Ø8mm piston, Ø18mm cylinder
• Pressure range -100N ~ 600N (newtons-force)

Standard Ends

• C9 - Steel, quick-fit ends (suits: Ø10mm ball, M6 thread)

Measuring Your Struts

• Selectlok gas struts are measured from "centre-of-eye" to "centre-of-eye" (at each of the end connectors) and at the struts full extended length (fully open).

Material And Finish

• Piston shaft and cylinder body - Stainless steel 316

Accessories

Stainless steel quick-fit ends, brackets and ball studs (Sold separately)

• SW-12-SS - SS ball stud, Ø10mm ball, M8 thread (suits: C9, C9A, C9S20M6 & C9S20M8)
• BRACKET-10L-SS - "C SHAPE" bracket profile, Ø10mm ball, 180° return, right angle bends (suits: C9, C9A, C9S20M6 & C9S20M8)
• C9S20M6 - SS quick-fit ends (suits: Ø10mm ball, M6 thread)
• C9S20M8 - SS quick-fit ends (suits: Ø10mm ball, M8 thread)
