Description

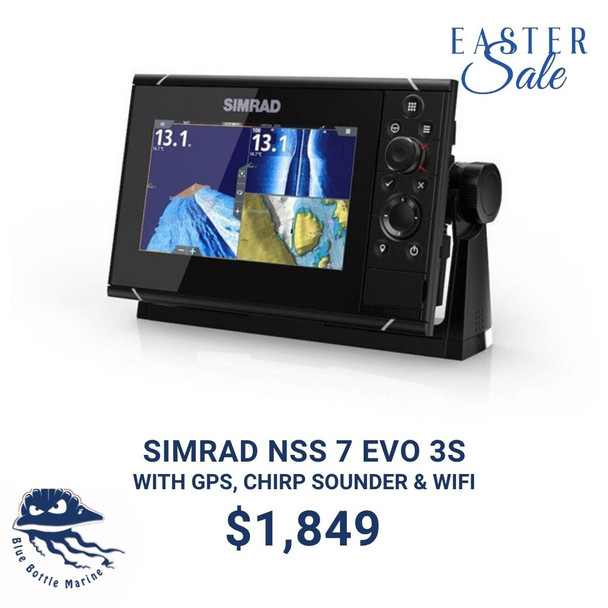

SIMRAD NSS 7 Evo 3 Combo
Slight carton damage – item inside is brand new and covered by full warranty.
Navigate, take control, and enjoy an unprecedented level of built-in functionality with NSS evo3. SolarMAX™ HD display technology offers exceptional clarity and ultra-wide viewing angles, combined with an all-weather touchscreen and expanded keypad for total control in all conditions. Cruise confidently with ForwardScan sonar, or fish easier with StructureScan; HD imaging and dual-channel CHIRP-enabled Broadband Sounder™ technology. Built-in Wi-Fi enables access to GoFree; online services, and delivers smartphone monitoring and tablet control to extend your display’s reach well beyond the helm. The NSS7 evo3 features a 7-inch display perfect for centre consoles and other installations where space is at a premium. Includes world basemap. - 7-inch widescreen SolarMAX™ HD display
- Reliable control in all conditions: switch seamlessly between multi-touch and a full keypad with rotary dial
- Integrated echosounder featuring dual-channel CHIRP, ForwardScan; sonar, and StructureScan; HD imaging
- Add StructureScan; 3D imaging, advanced Broadband Sounder™ capabilities and more via Simrad modules
- Expand your view with Halo™ Pulse Compression radar, Broadband 3G™/4G™, and other Simrad radar solutions
- Take complete control of Simrad autopilot systems with the NSS evo3 touchscreen or keypad
- NMEA 2000; connectivity enables integrated engine monitoring, sound system control, and much more
- Navigate accurately with an embedded high-gain 10 Hz GPS/GLONASS receiver
- Enjoy easier trip planning with TripIntel™ technology and support for Navionics Autorouting/C-MAP Easy Routing (automatic routing unavailable in North America)
- Built-in GoFree™ Wi-Fi enables online features and smartphone monitoring/tablet control
- Choose flush-mount installation for a low-profile Glass Bridge look, or bracket-mount to install almost anywhere
- Includes world basemap
SPECIFICATIONS:
Physical
|
Dimensions |
239 x 150 x 90 mm (9. 4 x 5. 9 x 3. 5"), With bracket: 263 x 161 x 93 (10. 35 x 6. 31 x 3. 66") |
|
Weight |
1. 1 kg (2. 42 lbs. ) |
Environmental
|
Operating temperature range |
-15°C to +55°C (5° F to 131° F) |
|
Environment Shock Vibration |
|
|
Storage temperature range |
-20°C to +60°C (4°F to 140°F) |
|
Water resistance |
IPX6 and 7 |
Power
|
Supply voltage |
10 - 31. 2 V DC |
|
Fuse rating |
5A |
|
Power consumption (Max) |
TBD |
|
Power consumption (Min) |
TBD |
|
Power consumption (Nom) |
TBD |
Display
|
Display backlight colour |
White |
|
Display resolution |
600 x 1024 |
|
Display screen brightness |
1200 nits |
|
Display size and type |
High Visibility SolarMax HD; IPS 7" optically bonded TFT |
|
Display viewing angles |
80° top/bottom, 80° left/right |
Connectivity
|
Ethernet |
1 x 5 pin yellow connector x 1 Mbit, max 6 processors on network |
|
Bluetooth |
Internal |
|
NMEA2000 connectivity |
1 x NMEA 2000 Micro-C port, 1 LEN |
|
NMEA 2000 PGNs |
Receive only |
|
NMEA 0183 connectivity |
1 x Transmit, 1 x Receive NMEA 0183, Baud Rates 4800, 9600, 19200, 38400. TX and RX use same baud rate. Optional data cable required (P/N 000-00129-001) |
|
NMEA 0183 sentences |
Input: GGA, GLL, GSA, GSV, VTG, ZDA, RMC, DBT, DPT, MTW, VLW, VHW, HDG, HDT, HDM, MWV, MWD, DSC, DSE, VDM. (Note AIS sentences are not bridged to or from NMEA 2000) Output GGA, GLL, GSA, GSV, VTG, ZDA, RMC, DBT, DPT, MTW, VLW, VHW, HDG, MWV, MWD, TLL, TTM" |
|
Video connectivity |
2 x composite (RCA connectors)video inputs. Optional video/ data cable required (P/N 000-00129-001). |
|
WiFi connectivity |
Internal |
Sonar
|
Sonar frequencies |
40-250kHz 455-800kHz |
|
Sonar max depth |
3000’+ (tested with B175L) |
|
Sonar output power |
1kW RMS |
|
Compliance |
CE, C-Tick,HDMI(12&16"), EN 60950-1:2006, EN 60945:2002 |
GPS
|
GPS |
Internal |
|
GPS update rate |
10 Hz |
|
GPS channels |
34 Channels |
|
GPS correction |
WASS, EGNOS, MSAS, GLONASS |
|
GPS position accuracy |
Horizontal Accuracy 3 m (9. 8 ft) |
|
GPS time to first fix |
Cold start 50 sec, Satellite Reacquisition 5 sec |
Features
|
Interface |
Full touch screen (multi-touch ) and full keypad control, OP50 remote controllers |
|
Charts Included |
Insight |
|
Radar |
Broadband Radar, Halo Pulse Compression Radar, HD Pulse Radar |
|
Sonar |
Two 9 pin Xsonic Sonar ports. Sonar port 1: Single channel CHIRP, 50/200 khz, HDI. Sonar port 2: Single channel CHIRP, 50/200 khz, TotalScan, LSS HD, ForwardScan. Compatible with: SonarHub, BSM-3, BSM-2, network echo sounders" |
|
Weather |
SiriusXM via WM-3 (USA only), GRIB |
|
AIS |
Receive AIS data over NMEA 2000 or *NMEA 0183 (has to be wired to all NSS processors) |
|
Auto pilot integration |
Full auto pilot control and commissioning |
|
Autopilot steering modes |
Auto, Nav. , No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail) |
|
Autopilot manoeuvres turn patterns |
U-turn, Spiral-turn, C-turn, Zig-zag, Square-turn, Lazy S-turn, Depth contour tracking |
|
Supported Charts |
Insight, Navionics (Gold, NAV+ Platinum+) , C-MAP (MAX N, MAX N+) NV Digital (Raster US Charts) |
|
Digital switching |
BEP C-Zone, Naviop |
|
External storage |
2 MicroSD slots, max. 32GB each. Larger if formatted to NTFS |
|
Internal storage |
16 GB |
|
Multi-media |
via SonicHub2, FusionLink, *Sirius, **JL Audio. *USA only, **AUST. & NZ only) |
|
Waypoints, routes & tracks |
6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points. |
|
Language Support |
Standard Language Pack: English(US), English(UK), Danish, German, Spanish, Finnish, French, Greek, Icelandic, Italian, Dutch, Norwegian, Portuguese, Swedish. |
Other languages supported by Unlock: Japanese, Korean, Thai, Chinese, Bulgarian, Hebrew, Croatian, Hungarian, Lithuanian, Latvian, Polish, Slovak, Turkish, Russian, Ukrainian, Arabic,Farsi
