Description
BLA Electric Winches - 2500, 3000, 3500

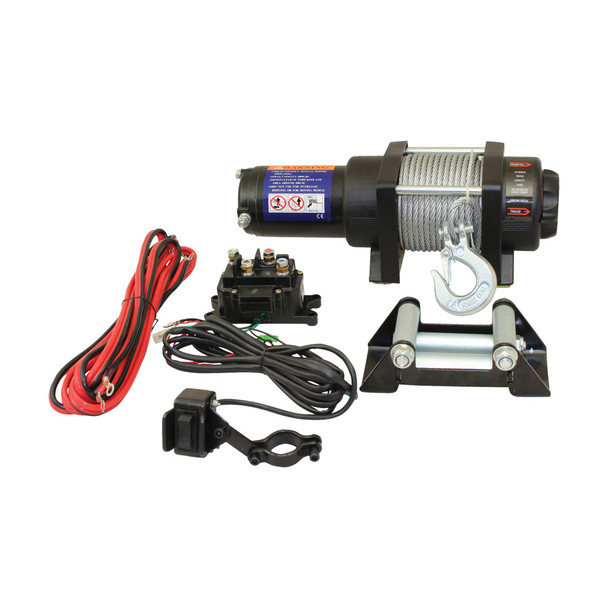

General purpose 12 volt winches with permanent magnet motor and planetary gearing. A spline joint clutch permits free-wheeling when powering out is not required. These electric winches are designed for intermittent duty operation only (such as winching a boat on/off a trailer) and are not suitable for industrial or hoisting applications. Supplied with in-line circuit breaker, galvanised wire with snap hook, solenoid, roller wire guide, and two way hard wired switch.
Features
• Power-in and power-out
• 1531 gear ratio
• Free-spooling clutch
N.B. Suggested boat length and weight is as a guide only. Other factors including ramp incline and boat trailer friction need to be taken into consideration.
## Specifications##
|
Specifications Chart
|
|||||||||
|---|---|---|---|---|---|---|---|---|---|
|
BLA Code
|
Model
|
Single Line Stall kg
|
Suggested Boat Length m
|
Suggested Boat Weight kg
|
Cable Size mm x m
|
Max Current amps
|
Motor HP
|
Weight kg
|
Dim. L x W x H mm
|
| 211212 | 2500 | 1134 | 5.3 | 2800 | 4.5 x 15 | 140 | 0.9 | 6 | 296 x 183 x 107 |
| 211222 | 3000 | 1361 | 5.6 | 3400 | 5 x 15 | 168 | 1.1 | 8.5 | 310 x 188 x 125 |
| 211224 | 3500 | 1587 | 6 | 3900 | 5.5 x 15 | 230 | 1.3 | 10 | 321 x 199 x 120 |
