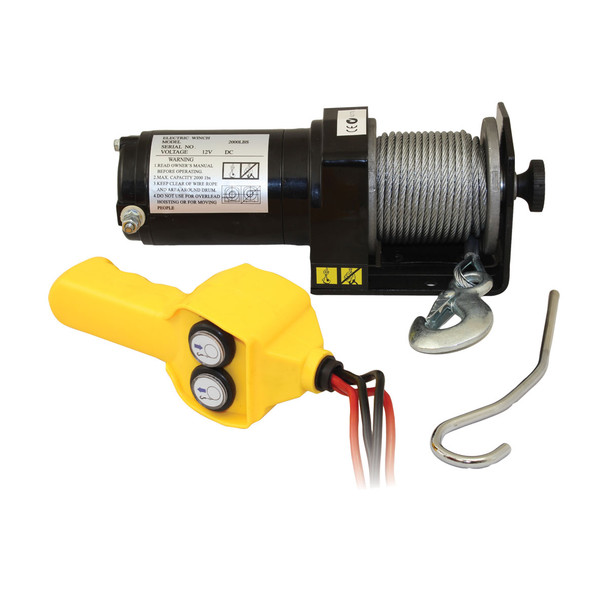

BLA Electric Winch - 2000
Economical 12 volt general purpose winch with permanent magnet motor and 1531 planetary gearing. Power-in/power-out operation is via a weather resistant, hard wired hand remote. Free-spooling clutch is operated by a pull and turn knob which disengages the gearbox allowing the cable to be pulled out manually. Galvanised steel cable with snap hook included. Suitable for intermittent duty operation only (such as winching a boat on/off a trailer) and is not suitable for industrial or hoisting applications.
N.B. Suggested boat length and weight is as a guide only. Other factors including ramp incline and boat trailer friction need to be taken into consideration.
|
Specifications Chart
|
|||||||
|---|---|---|---|---|---|---|---|
|
BLA Code
|
Model Single Line
|
Stall kg
|
Suggested Boat Length m
|
Suggested Boat Weight kg
|
Cable Size mm x m
|
Weight kg
|
Dim. LxWxH mm
|
| 211210 | 2000 | 907 | 5 | 2200 | 4 x 15 | 6.5 | 296 x 176 x 107 |
