Simrad Monitor Sim Touch,High Brt

Total Control of your Simrad Glass Bridge
Enables intuitive multi-touch control of your glass bridge system through a bright and clear widescreen display. With familiar gestures like pinch-to-zoom, operating your bridge displays becomes as simple as using a tablet or smartphone. MO-series marine monitors can also be installed as an extra screen for other HDMI-capable Simrad displays, and a wide range of other devices, offering a consistent interface across all of your on-board electronics.

Styled to Complement any Helm Design
MO-series marine monitors feature thin bezels to maximize the usable screen area for your available dash space. A low 8 mm flush-mount profile blends the display seamlessly into your dash or console, giving you the perfect view whilst offering the elegance of a clean helm. Each monitor includes both silver and black trim options to complement any colour scheme and helm design.

Easy to Use, Cost-Effective to Install
A simple menu system makes it easy to switch between display sources, or use the monitor’s customisable picture-in-picture option. Menu keys are built right into the glass bezel on the front of the display, offering ultimate convenience without compromising on aesthetics. MO-series monitors also offer quick and cost-effective installation with a ‘mount from front’ option, and connect directly to a wide range of electronics with HDMI, DVI, and composite inputs.

## Features##

Features

• 1000-nit high-brightness, sunlight-viewable screen
• Full multi-touch control of your Simrad glass bridge
• 15.6-inch,18.5-inch and 24-inch active viewing area

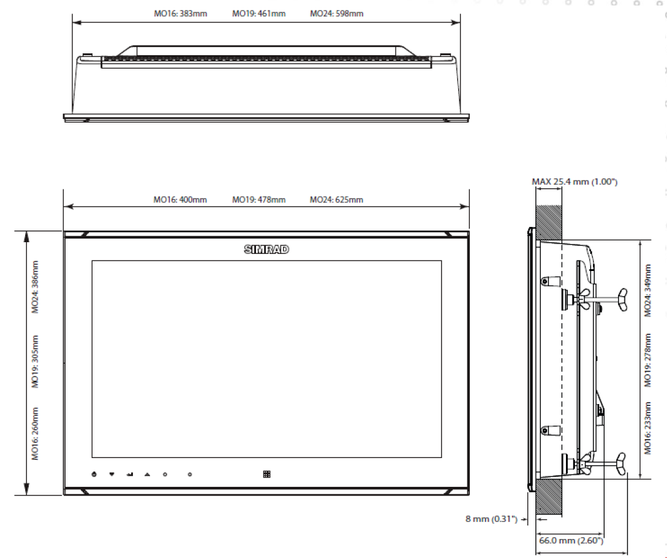

• Thin bezel with a low profile 8 mm flush-mount design
• Cost-effective installation with a ‘mount from front’ option
• Includes HDMI, DVI, and composite inputs
• Customisable picture-in-picture support
• Simple, touch-operated menu controls

Comes With

• N2K-T-RD,MICRO-C,T-JOINER
• N2K-T-RD,MICRO-C,T-JOINER
• N2KEXT-6RD,CABLE,MICRO-C, 1,8M
• MO16/19/24 CABLE RETENTION BRKT
• M5016/19/24/27, REAR MNT BRACKET KIT
• MO24 BEZELS,SILVER & BLACK,2PCS EACH
• MO16/19/24 CONNECTORS KIT

Spares

• M5016/19/24/27, REAR MNT BRACKET KIT
• MO16 BEZELS,SILVER & BLACK,2PCS EACH
• MO24 BEZELS,SILVER & BLACK,2PCS EACH
• MO16/19/24 CONNECTORS KIT
