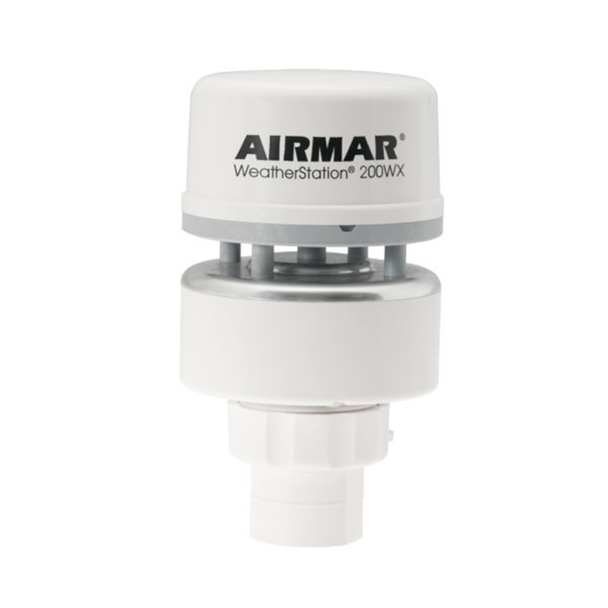

Airmar 200WX NMEA 0183 / 2000 Weather Station - (No Relative Humidity) - RS232
- Ultrasonic measurement of apparent and Dynamic true wind speed and direction
- Barometric pressure
- Air and wind chill temperature
- Relative humidity (field serviceable option)
- Calculated dew point and heat index
- GPS position, speed over ground, and course over ground
- Three-axis, solid-state compass with dynamic stabilization
- Three-axis rate gyro supplies rate-of–turn data
- Three-axis accelerometer for best-in-class pitch and roll information
- Housing IPX6 rated for water-ingress protection
- Data output via a single cable (various lengths available)
- NMEA 0183/ASCII serial data protocol over RS-232 interface
- NMEA 2000 protocol over CAN
## Specifications##
Air Temp Accuracy: ±1.1°C at 20°C
Air Temp Range: -40 to 80°C (-40 to 176°F)
Air Temp Resolution: 0.1°C
Barometric Pressure Accuracy: ±1 hPa at 25°C
Barometric Pressure Range: 300 to 1100 hPa
Barometric Pressure Resolution: 0.1 hPa
Certs And Standards: CE, IPX6 (IPX4 with optional Relative Humidity sensor), RoHS, IEC61000-4-2, IEC60945, IEC60950_1C, IEC60950_22A, EN55022, EN55024, EN14982
Comm Method: NMEA 2000®
Communications Available Hardware Interface: Serial RS232, Serial RS422, CAN
Communications Available Protocol: Serial - NMEA 0183, CAN - NMEA 2000
Communications Serial Data Transmission Code: ASCII
Communications Serial Output Rate: 1 Hz typical. User selectable. 10 Hz maximum recommended
Country of Origin: USA
Display Connector: Cable Required
Exterior Color: White
Exterior Color: White
GPS Position Accuracy: 2.5 m (8’) CEP
Mounting Thread: Standard 1”-14 UNS (3/4” NPT optional)
NMEA 2000 LEN: 2
Note: Cables sold separately unless otherwise specified
Operating Temp Range: -25 to 55°C (-13 to 131°F)
Optional RH Accuracy: ±5% RH at 0 to 90% RH at 20°C
Optional RH Range: 0 to 100% RH
Optional RH Resolution: 0.1% RH
Pitch Roll Accuracy: ±1° in range of ±30°
Pitch Roll Measurement Type: MEMS
Pitch Roll Range: 60°
Power Supply Current: <75 mA (<0.9 W) at 12 VDC
Power Supply Voltage: 9 to 40 VDC
Recommended Use: Marine or Land-Based, Mobile or Stationary
Refurbished: No
RoHS Compliant: Yes
Sensor Connector: 10WS
Three Axis Compass Dynamic Heading Accuracy: 2° dynamic heading accuracy
Three Axis Compass Range: 0 to 359.9°
Three Axis Compass Static Heading Accuracy: 1° static heading accuracy
Weight: 300 g (0.7 lb.)
Wind Direction Accuracy: 2.5° RMS @ 20 knots
Wind Direction Range: 0° to 359.9°
Wind Direction Resolution: 0.1°
Wind Speed Accuracy: 2 knots RMS @ 20 knots
Wind Speed Calculations: User configurable damping
Wind Speed Range: 0 to 40 m/s (0 to 89 MPH)
Wind Speed Resolution: 0.1 m/s
Humidity: Optional
Waterproof Rating: IPX6, IPX6 (Relative Humidity/IPX4)
