Description

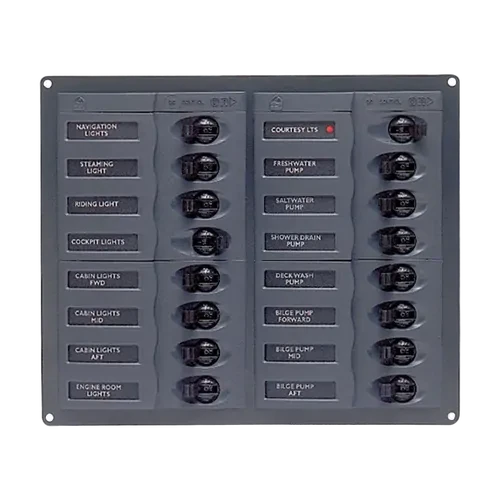

BEP DC Circuit Breaker Switch Panel 16 Circuit
Circuit breaker panels with stylish curved front facia incorporating recesses for circuit breaker toggles preventing them from being switched on accidentally.
Features:
• Durable grey powder coated marine grade aluminium base panel
• Marine quality, magnetic, hydraulic, UL listed trip free breakers
• Backlit labels supplied, refer page 156
• Suitable size negative busbar supplied, refer page 183
• Red LED indication for circuits ‘on’
• Green LED back lighting for meters and labels
• Double pole configurations available for survey or additional safety
With the flexibility of the ‘Contour’ four way plastic modules, BEP can build panels to custom requirements if requested.
| Item Code | Circuits | Overall Size W x H mm | Cut Out Size W x H mm | Intrusion mm | Mount Screws Gauge | Power Volt | Label Sheet | Circuit Breakers 5 AMP | 10 AMP | 15 AMP | 20 AMP | 25 AMP | 30 AMP |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SUR-904NM | 16 | 239 x 200 | 219 x 180 | 65 | 6 r/h | 45627 | 1 | 4 | 5 | 5 | 1 | 1 | - |
