Description

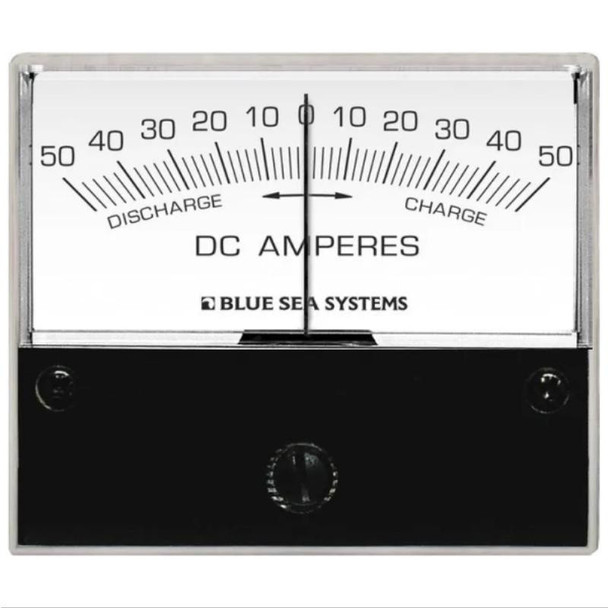

Blue Sea DC Analog Zero Centre Ammeter with External Shunt - 50-0-50A with Shunt
- Meters read both discharge and charge current
- Simple 4-wire connection from shunt
- Meter senses and powers from shunt connection
- Includes appropriate DC shunt
- Backlit meter face (separate 12 or 24V DC backlight connections)
##Specifications##
| Specifications | |
|---|---|
| Meter | Current |
| Face Size | 2.75in (69.85 mm) |
| Function | 50 to 50A |
| Backlighting Amperage | 16mA @ 12V DC 20mA @ 24V DC |
| Meter Current | 1mA at full scale |
| Shunt Type | External 50mV@full scale |
| Weight | 0.54lb (0.24 kg) |
| Weight | 0.58lb (0.26 kg) |
