Description

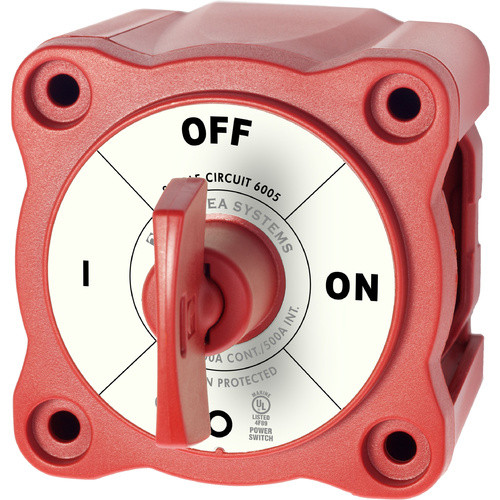

Blue Sea m-Series Mini On-Off Battery Switch with Key
Switches a single battery to a single load group
Note: 6005 replaces 9005
- Ignition protected—safe for installation aboard gasoline powered boats
- Case design allows surface front panel or rear panel mounting
- Isolating cover with snap-on sections protects rear contacts
- 3/8""-16 tin-plated copper studs for maximum conductivity and corrosion resistance accepts 3/8"" and M10 ring terminals
- 7/8"" (22.22mm) stud length to accept multiple cable terminals
- Ideal for marine or RV applications
- All non-corrosive marine grade metals
- Molded in durable reinforced polycarbonate
- Tactile textures indicate knob position by feel only
- Label with international ON/OFF legends
- Removable key or knob remains positively retained
- ICON label set included for circuit identification
##Specifications##
| Specifications | |
|---|---|
| Switch Type | Single Circuit ON-OFF |
| Colour | Red |
| Switch Positions | 2 |
| Battery Combine | No |
| Alternator Field Disconnect | No |
| Maximum Voltage | 48V DC |
| Stud Size | 3/8" |
| Terminal Stud Torque | 120 in-lb (13.56 Nm) |
| Continuous Rating | 300A |
| Intermittent Rating | 500A (5 min) |
| Starting Rating 30 sec | 900A |
| Battery Inputs | 1 |
| Cable Clearance For 4/0 AWG Cables | 1.12in (28.45 mm) |
| Cable Size to Meet Ratings | 4/0 AWG (120mm²) |
| Mounting Holes | Accept #10 Screw |
| Stud Material | Tinned Copper |
| Stud Torque | 120 in-lb (13.56 Nm) |
| Switching Rating | 25A |
| Terminal Stud Size | 3/8" - 16 (M10) |
| Weight | 0.62lb (0.28 kg) |
| Weight | 0.62lb (0.28 kg) |
Switches a single battery to a single load group.
Switch set to ON.
