Description

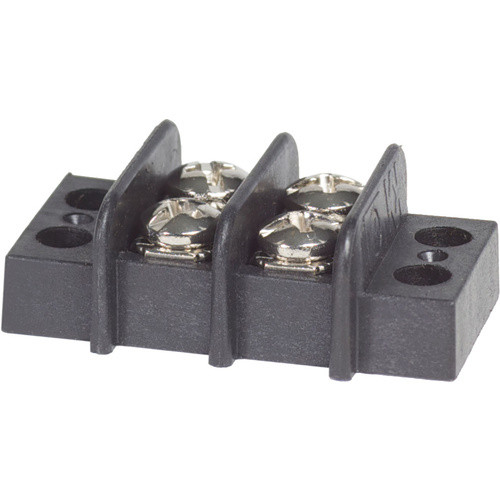

Blue Sea Terminal Block 20A - 2 Circuit
- Closed back design completely insulates power from the mounting surface
- Fully insulated independent terminal blocks to isolate circuits
- Each screw pair is one isolated circuit
- Terminal Block Jumpers allow creation of common circuits
- Closed back design insulates power from the mounting surface
| Circuits | 2 |
| Length | 1.43in (36.32 mm) |
| Maximum Voltage | 300V AC/DC |
| Continuous Rating | 20A |
| Base Material | UL 94 V0, PC |
| Bus Material | Nickel-Plated Brass |
| Mounting Screw | #6 [M3.5] |
| Screw Material | Stainless Steel |
| Screw Terminal Torque | 7 in-lb (0.79 Nm) |
| Terminal Screws | M3.5 |
| Wire Terminal Size | #6 [M3] |
| Weight | 0.05lb (0.02 kg) |
