Description

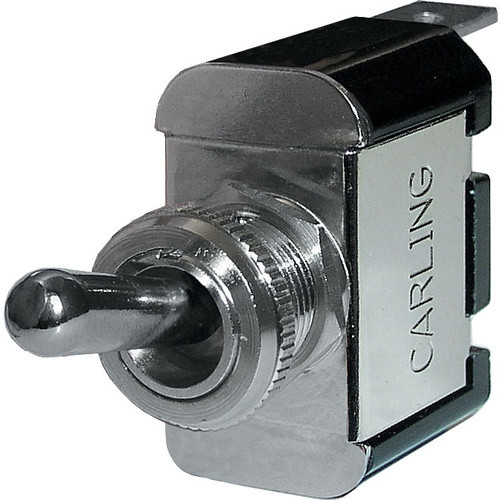

Blue Sea Toggle Switch SPST - (ON)-OFF
- Specially manufactured by Carling Technologies for use in Blue Sea Systems' WeatherDeck Panels
- When mounted with a WeatherDeck Toggle Switch Boot Rated IP67-temporary immersion for 30 minutes
- Nickel-plated brass and phenolic non-corrosive construction
- Common application - horn or windshield wipers
##Specifications##
| Specifications | |
|---|---|
| Action | OFF-(ON) |
| Pole / Throw | SPST |
| Poles | 1 |
| Common Applications | horn or windshield wipers |
| Maximum Amperage | 15A @ 125V AC 15A @ 12V DC 10A @ 250V AC |
| Terminal Type | Quick Connect Tab |
| Number of Terminals | 2 |
| Terminal Size | 0.25in (6.35 mm) |
| Weight | 0.10lb (0.05 kg) |
