Description

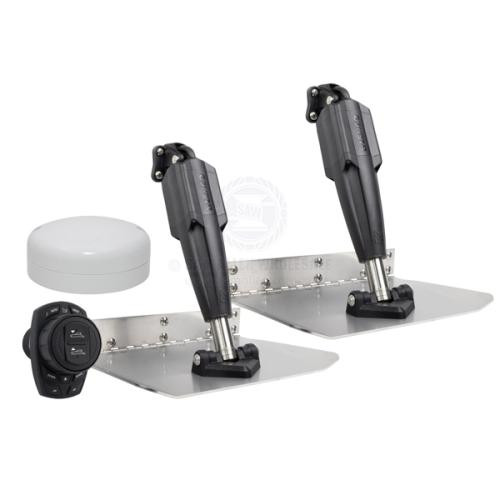

Lenco Pro Control Auto System Kits - Electro Polished.
Pro Control Auto delivers industry-leading auto-levelling for unprecedented precision, control, and comfort on the water. The original Trim Tab design, ideal for centre console fishing boats to cabin cruisers.
Kit Includes:
• 1 x Pro Control Auto Keypad (557032).
• 1 x Pro Control Auto IMU (557038).
• 2 x 12-gauge 304G (2.7mm) stainless steel electro-polished finish blades with 5/8 inch (16mm) flared edges.
• 2 x 2.25 inch Stroke SD Pro Actuators, 11-1/2 inch pin to pin (557054).
• 6 x Micro C Tee Connector (557088).
• Micro C Power Cable with fuse and ground (557072).
• 2 x 6ft Micro C Drop cables (557073), 1 x 15ft (557074) and 1 x 25ft (557076) Micro C Drop cables.
• 2 x 6 Pin Deutsch to Micro C Actuator Network Adapter Cable (557080).
• 2 x 3ft (.91 m) Pro Control Actuator Power Pigtail (557082).
• 1 x Wake Signal Adapter for Non-Mercury Systems (557084).
• 2 x Corrosion proof Upper Mounting Brackets with gland seal (557064).
• 2 x Corrosion proof Lower Mounting Brackets (557066).
• Lenco 2K Backbone Kit.
| Part No. | 557021 | 557023 | 557026 | 557027 |
| Series | Pro Control Auto System - Standard Tab Kit | Pro Control Auto System - Standard Tab Kit | Pro Control Auto System - Standard Tab Kit | Pro Control Auto System - Standard Tab Kit |
| Keypad | Auto | Auto | Auto | Auto |
| Volts (V) | 12 | 12 | 12 | 12 |
| Size L x W (in) | 9 x 12 | 12 x 12 | 12 x 18 | 12 x 30 |
| Size L x W (mm) | 228 x 305 | 305 x 305 | 305 x 457 | 305 x 762 |
| Hinge Height (mm) | 51 | 51 | 51 | 51 |
| Min. Transom Height (mm) | 356 | 356 | 356 | 356 |
| Approx. Boat Length (Mtr) | 4.8 - 7.6 | 5.1 - 9.1 | 7.9 - 11.0 | 10.5 - 12.5 |
| Available Soon - Due in August. | Available Soon - Due in August. |
