Description

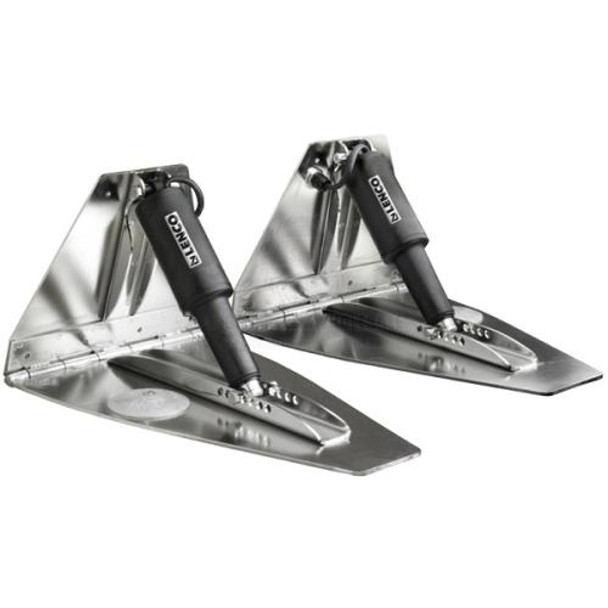

Lenco Trim Tab Kit - Hi Performance Kit
Plates are constructed of electro-polished 4.6mm laser cut 304G stainless steel, heavy-duty hinge with 9.5mm diameter pin. Full transom back plate with remote gland-seal, welded stainless steel upper and adjustable lower C-channel brackets.
Kit Includes:
• 2 x 7-gauge stainless steel electro-polished blades.
• 2 x 101XD Actuators with 1.8m cable and Deutsch connectors.
• 1 x Set of stainless steel nuts and bolts.
• 2 x Zinc anodes.
• Lenco owner’s installation manual.
• Compliance: CE Certified.
• 5 Year Warranty (Recreational Use).
## Specifications##
| Specifications Chart |
|
| Part No. | 55468-SAM |
| Length | 18 inch (457mm) |
| Width | 12 inch (305mm) |
| Series | Hi Performance Actuator Kit |
| Switch | Optional |
| Volts | 12V |
| Hinge Height | 254mm |
| Min. Transom Height | 267mm |
| Approx Boat Length | 5.8Mtr - 10.4Mtr |
| Finish | Electro Polished |
