Description

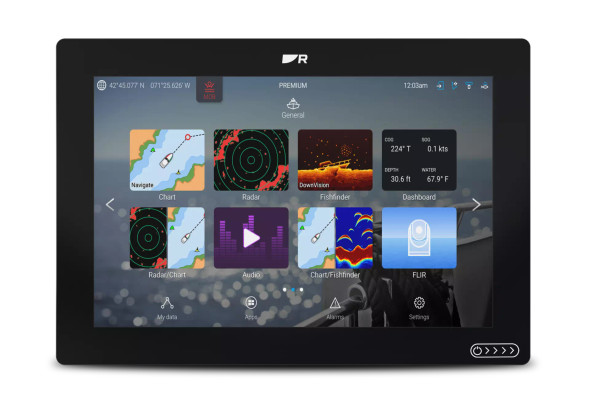

Raymarine Axiom 2 9" Multi Function Display
No Maps No Sonar No Transducer
Axiom 2 chartplotters deliver faster performance and upgraded processing power in 7-, 9-, or 12‘inch sizes. Available as chartplotter‘only or with built‘in RealVision™ sonar.
The Marine Chartplotter You Trust. Now Even Better
Our most popular marine chartplotters — now faster, more connected and built for the future. Axiom 2 unifies navigation, sonar, radar, video and NMEA 2000 networks into one powerful display. Choose Axiom 2 as a dedicated chartplotter for confident navigation, or step up to Axiom 2 RV for the ultimate all‘in‘one chartplotter and fish finder combo.
One Display. Total Control
Axiom 2's LightHouse operating system is a single, simple-to-use interface for complete situational awareness. Make Axiom 2 your all-in-one multifunction display or connect additional Axiom 2 displays at your helm or a remote station.
Built for Speed and Expansion
Gigabit RayNet Ethernet enables faster networking between displays and sensors. Experience smoother radar, sonar and video performance across the system.
Engine Monitoring
Connect with leading engines including Mercury, Yamaha Suzuki and more. Monitor performance, fuel, and propulsion data directly from the helm.
More capability, built in
Expand your Axiom 2 with access to 30+ marine apps. Take control of lighting, audio, energy monitoring and weather systems. Or stream entertainment from Netflix, YouTube and Spotify.
All-Weather Performance
Rugged IPX6 waterproof construction and bright HydroTough™ displays repel water for reliable touchscreen control in all conditions.
Advanced Sailing Tools
Optimize your performance under sail with Axiom 2's suite of powerful sailing features including polar profiles, dynamic laylines, race timers and tactical sailing displays
## Specifications##
| Specifications Chart |
|
| Dimensions (Trunnion mounted) | Axiom 2 9" Width: 265.03 mm (10.43 in), Height: 187.81 mm (7.39 in), Depth including cables: 178 mm (7.01 in) |
| Dimensions (Surface/Flush mounted) | Axiom 2 9" Width: 244.08 mm (9.64 in), Height: 157.78 mm (6.21 in), Depth including cables: 178 mm (7.01 in) |
| Accessory connection | USB Micro B |
| Ethernet connection | RayNet (10 / 100 / 1000 Mbit/sec Ethernet) |
| External storage |
MicroSDXC card slot x 1 |
| NMEA 2000 connection |
DeviceNet (male connector built into power cable) |
| Wireless connections |
Bluetooth: V4.0, Wi-Fi: 802.11/b/g/n |
|
Internal storage |
64 GB |
| Transducer connection |
25 pin RealVision type connector. Requires the A80490 adaptor cable for CPT-S style transducers |
## Specifications##
## In The Box##
Axiom 2 Box Contents
1 MFD (supplied with Trunnion adaptor fitted)
2 Trunnion bracket
3 Trunnion knobs x 2
4 Suncover
4 Suncover — Trunnion mount
5 Panel mount gasket for surface/flush mounting
6 M5x58 Threaded studs x 4
7 M5 Thumb nuts x 4
8 Documentation pack
9 Power/NMEA 2000 cable (with 1.5 m (4.92 ft) power lead and 0.5 m (1.64 ft) NMEA 2000 lead).
## In The Box##
