Raymarine AXIOM 2 PRO 9 S - MFD Hybridtouch

The Axiom 2 Pro S HybridTouch 9" Multi-function Display combines chartplotter, sonar, radar, autopilot, and video into a single, powerful navigation system.

Its HybridTouch™ interface offers both intuitive touchscreen and reliable keypad control, giving you full command whether at the helm or in rough seas.

Powered by the LightHouse operating system, you can use it as a standalone GPS chartplotter or network multiple Axiom displays via a simple RayNet cable connection.

Integrated high CHIRP sonar provides accurate depth readings and detailed underwater imaging,

ideal for confident navigation and exploration. A 6-core processor ensures fast, seamless integration of chartplotter, radar, autopilot, and video.

HydroTough™ nano-coating repels water, improves touchscreen responsiveness, enhances colours, and maintains excellent visibility in sunlight.

Smart backlighting and an ambient light sensor automatically adjust screen brightness for day and night conditions.

Take control with customizable keypads, including a dedicated Evolution autopilot keypad or programmable soft keys, and access advanced sailing tools to optimise performance under sail.

The Axiom 2 Pro S makes planning, plotting, and navigating simpler, faster, and more precise than ever.

• 9" Display
• Includes preloaded LightHouse Charts Australia and New Zealand
• Includes 1 Free year of LightHouse Charts Premium Subscription

## Features##

Features

• Polars and Dynamic Laylines: Preloaded with 500+ racing and cruising sailboat polar profiles, enabling performance tracking against your vessel’s potential and displaying real-time dynamic laylines on charts.
• Race Like a Pro: Features adjustable race timers, data dashboards, and a SmartStart™ starting line tool with line bias, time-to-burn, and favoured-end indicators for optimal starts and maximum performance.
• Tactical Advantage: Sailing-specific dial indicators display optimal steering direction to maximise VMG to windward, making precise sail trimming easier than ever.
• Discover More: LightHouse Charts are created from official hydrographic sources, offering maximum readability, intuitive navigation, and superior quality.
• Upgrade Your Awareness: Add a Quantum 2 radome or Cyclone open array radar for safer navigation with Doppler target tracking and radar/chart overlay.
• Turn Night Into Day: FLIR thermal imaging and Axiom 2 Pro provide clear visibility in darkness, enhancing safety and confidence on the water.

• Make Smarter Decisions: Add a CAM300 and AR200 sensor for ClearCruise augmented reality, displaying AIS, waypoints, and chart objects overlaid on high-definition video.

• Advanced Engine Integration: Connect with NMEA2000-compatible engines or experience advanced integration with Mercury SmartCraft and Yamaha Command Link engines.

• Stream, Watch, and Listen: Stream Netflix and Spotify, control Fusion, JL Audio, and Rockford Fosgate marine audio systems, or display Axiom 2 Pro on a larger screen via HDMI output.
• Stay Connected: Add the YachtSense Link router to keep your system connected both onboard and remotely via the Raymarine mobile app.
• Axiom on Your Smartphone: Built-in Wi-Fi allows you to view and control your Axiom 2 Pro on your phone or tablet using the Raymarine Mobile App.
• Do More with LightHouse Apps: Expand your Axiom 2 Pro’s capabilities with third-party apps from Raymarine’s marine technology partners.
• Conical Sounder Capability: Provides precise depth readings and underwater imaging when paired with CPT-S transducers, using a focused conical sonar beam for accurate soundings.

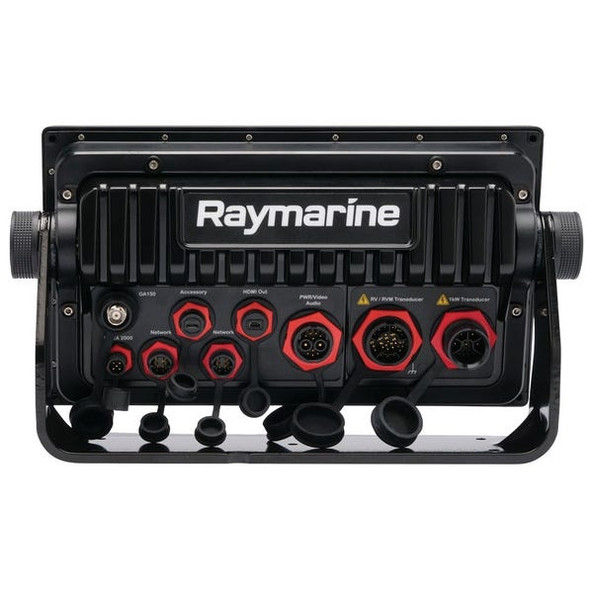

• Create a Powerful Navigation System: Two RayNet Ethernet ports and NMEA2000 allow you to build an Axiom 2 Pro network with multiple displays, sonar modules, radar, autopilot, thermal cameras, and video integration.

Requires the A80490 adaptor cable for CPT-S style transducers

## Features##

## Specifications##

Specifications

• Power consumption @ 12 V DC Axiom Pro 9: 33.12 W
• Power consumption @ 24 V DC Axiom Pro 9: 30.96 W
• Operating voltage range: 8 V DC to 32 V DC
• Nominal supply voltage: 12V DC / 24V DC
• Off current @ 12 V dc 11 mA (0.13 W)
• Off current @ 24 V dc 18 mA (0.43 W)
• LEN (NMEA 2000 Load Equivalency Number) 1
• Current: 5A
• Fuse rating: 15 A

GPS (GNSS)

• Position Accuracy: Without SBAS: ≤ 15 m (95% of the time), With SBAS: ≤ 5 m (95% of the time)
• Geodetic Datum: WGS-84 (alternatives selectable on the MFD)
• Satellite Differential Type (SBAS): WAAS (US), EGNOS (Europe), MSAS (Japan), GAGAN (India), QZSS (Japan)
• Channels: Track up to 28 satellites simultaneously
• Antenna: Internal ceramic chip mounted near the top of the unit
• GNSS Compatibility: GPS, Galileo, GLONASS, Beidou
• Almanac Update: Automatic
• Signal Acquisition: Automatic
• Receiver IC Sensitivity: 165 dBm (Tracking), 160 dBm (Acquisition), 148 dBm (Cold start)
• Operating Frequency: 1574 MHz – 1605 MHz
• Refresh Rate: 10 Hz (10 times per second)
• Time to First Fix (cold start): < 2 minutes

Environmental

• Operating Temperature: -25°C to +55°C
• Storage Temperature: -30°C to +70°C
• Relative Humidity: Up to 93% @ 40°C
• Waterproof Rating: IPx6, IPx7

LCD

• Size (diagonal): Axiom 2 Pro 9: 9.0”
• Aspect Ratio: Axiom 2 Pro 9: 16:9
• Resolution: Axiom 2 Pro 9: 1280 x 720 HD
• Viewing Angle: Top 88° / Bottom 88° / Left 88° / Right 88°
• Type: IPS (In-Plane Switching)
• Colour Depth: 24-bit
• Illumination: Axiom 2 Pro 9: 1300 nits / 1300 cd/m²
• Number of Simultaneous Touches: 1 to 16

Sonar

• Channels: CHIRP conical sonar
• Depth Range: 0.6 m (2 ft) to 274 m (900 ft), depending on water conditions
• Transducer connection: 25-pin RealVision type connector.  Requires the A80490 adaptor cable for CPT-S style transducers

## Specifications##

## In the Box##

What's in the box?

1. Display unit
2. Suncover
3. Trunnion knobs (x 2)
4. Gasket
5. DeviceNet to SeaTalkng adaptor cable 1m (3.28 ft)
6. Optional grounding connection (Screw (M3x5), Spring washer (M3), Crimp terminal (M3)
7. Trunnion bracket (Axiom 2 Pro 9 and 12 Only)
8. RayNet (Female) to RayNet (Female) network cable 2 m (6.56 ft)
9. Mounting fixings x4
10. Power/Video/Audio cable 1.5 m (4.92 ft)

## In the Box##
