Raymarine Docksense Alert Systems - Assisted Docking Technology

DockSense Alert is the next generation of Raymarine’s intelligent docking technology designed to enhance a captain’s awareness of immediate surroundings while manoeuvring the vessel in close quarters. Using advanced stereo vision camera technology, DockSense Alert detects objects above the water line and creates an intuitive map of potential hazards around the boat. Live video feeds enhance the captain’s view while audible and visible alerts inform the captain when an object is close to the vessel.

How It Works

DockSense Alert integrates with Raymarine Axiom® multifunction displays to present a real-time birds-eye view of the vessel and its immediate surroundings. Raymarine's 3D stereo vision cameras deliver live video to the helm and employ advanced motion sensors to measure the distance between the boat and external objects accurately. The system also delivers audible and visual alerts, intelligently informing the captain of any external object's proximity to the vessel. This new level of awareness simplifies docking while mitigating against the effects of wind, tide, and monitoring objects out of sight from the helm.

Dock With Confidence

DockSense Alert gives captains the confidence to dock in challenging conditions at any dock, in any location. Unlike other docking assistants, DockSense Alert does not require any complex external dockside beacons or sensors. Raymarine’s DockSense Alert is entirely self-contained and integrated with the vessel’s navigation system and readyto use in every docking location.

At the helm, Axiom’s DockSense Alert app provides an informative mapshowing distance to objects around the boat. Live camera feeds provideadded confidence by eliminating blind spots and allowing the captain tosee what is happening in real-time. DockSense Alert also offers helpful notifications tuned to the captain’s preferred proximity alert distance.

Docksense Alert Vessel Integration

DockSense Alert systems are designed for professional engineer installation, and each system integrates with Raymarine Axiom multifunction navigation displays. In addition to advanced 3D stereo vision cameras, DockSense Alert systems require precision heading and motion-sensing technology in the form of the AR250 and AR270 DockSense heading sensors. The two sensors combine to create a highly accurate GPS compass system, unaffected by magnetic interference. When outfitting a vessel, Raymarine DockSense experts will partner with your engineering team to design a DockSense Alert system that provides maximum coverage and confidence for you.

## Camera Configuration##

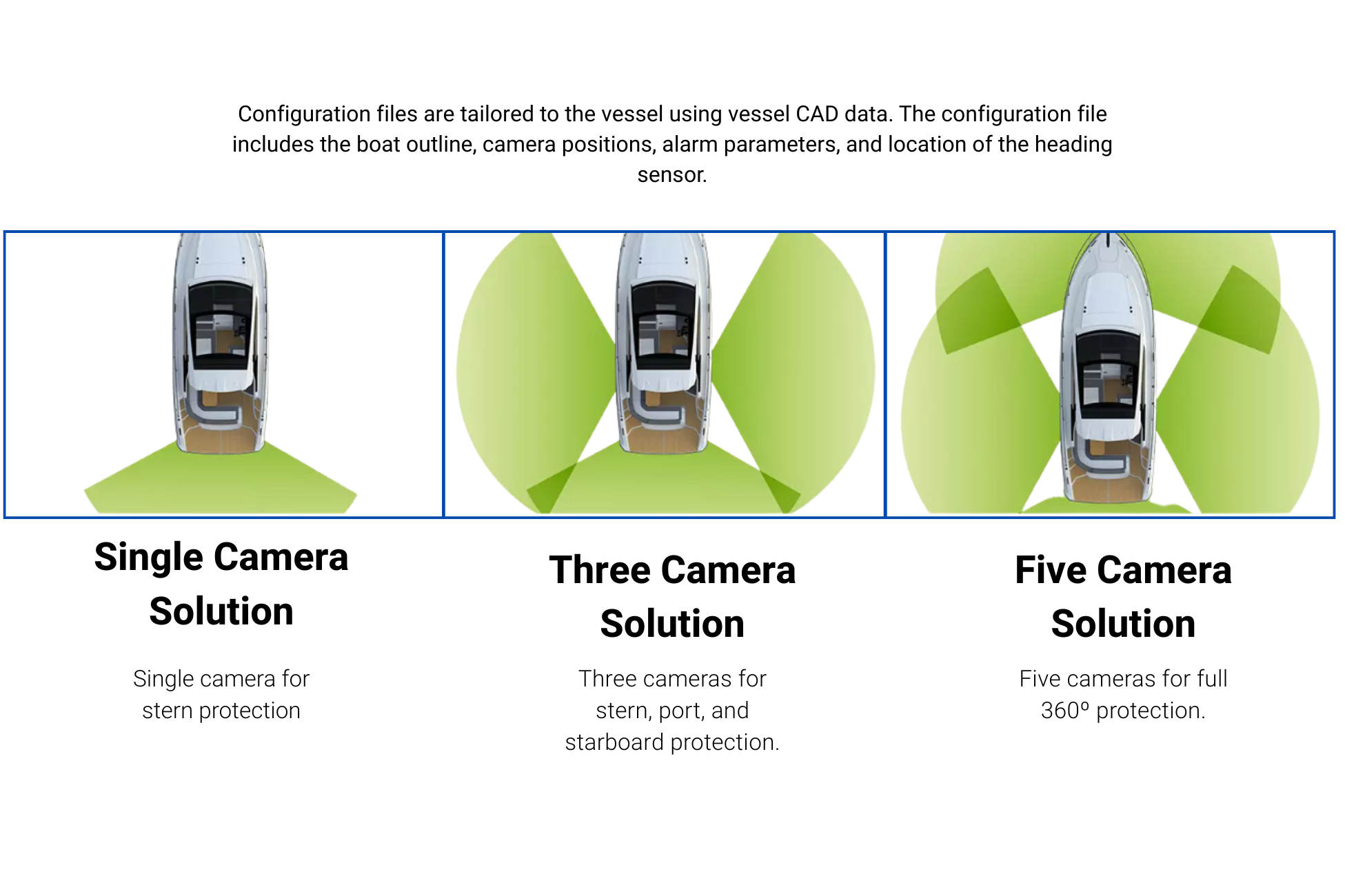

Camera Configuration
