Description

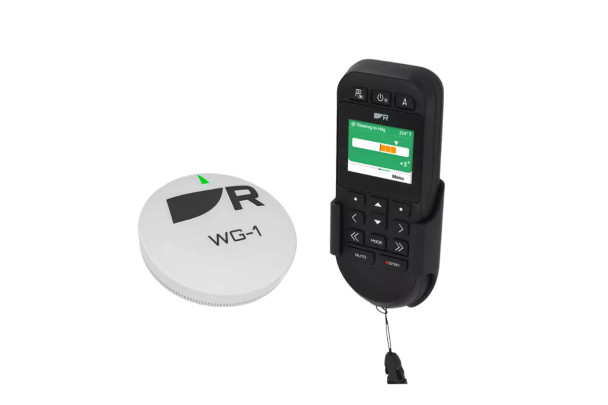

Raymarine RCU-1 Autopilot Remote Control with WG-1 Bluetooth Puck
A wireless autopilot remote controller designed for both powerboats and sailboats. With a bright color display, intuitive Point-and-Go navigation, and Solo Sailor safety mode, it puts full autopilot control in your hand.
Instant, handheld control of your boat's autopilot when precision and safety matter most.
Featuring a bright colour display and ergonomic design for single hand operation, the RCU‑1 wireless marine autopilot remote puts the power of Raymarine Evolution in the palm of your hand. Whether trimming sails, managing fishing gear, or simply moving around the deck, boaters can stay in command from virtually anywhere on board.
## Features##
Wireless Autopilot Control
Enjoy the freedom of engaging and disengaging your boat's Evolution autopilot from anywhere onboard.
Intuitive Control
Set a new course with Point-and-Go mode. Simply aim the RCU-1 in direction you want the autopilot to follow.
Enhanced Safety
Solo Sailor Mode automatically points the boat into the wind when a wearer-overboard situation is detected.
Long Battery Life
Powered by two AA batteries for up to 30 days of continuous use.
Live Navigation Data
View heading, speed, depth, wind, and waypoint info on a bright handheld display.
Built for the Marine Environment
Rugged, waterproof design and a bright sunlight viewable display.
## Features##
## Specifications##
| Physical | |
|---|---|
| Height (handset only) |
150.87mm (5.94 in) |
| Width (handset only) |
59.83mm (2.36 in) |
| Depth (handset only) |
31.51mm (1.24 in) |
| Product weight (Remote and batteries) |
190g (6.70 oz) |
| Battery | |
|---|---|
| Size |
AA |
| Types |
Alkaline |
| Environmental | |
|---|---|
| Operating temperature range |
-25°C (-13°F) to + 55°C (131°F) |
| Storage temperature range |
-30°C (-22°F) to + 70°C (158°F) |
| Humidity |
up to 95% @ 40 C (104°F) |
| Water ingress protection |
IP67 |
| Installation location |
Above decks Below decks |
| AHRS | |
|---|---|
| AHRS |
3–Axis Accelerometer |
| Magnetic compass accuracy |
Static = ±1° RMS |
| Pitch, Roll and Yaw accuracy |
±1° |
| Heading, Pitch, Roll and Rate of Turn update rate |
10 Hz |
| Bluetooth | |
|---|---|
| Bluetooth Version |
5.1 |
| Connection range |
Up to 30m (98.43ft) with clear line of sight |
## Specifications##
## In The Box##
|

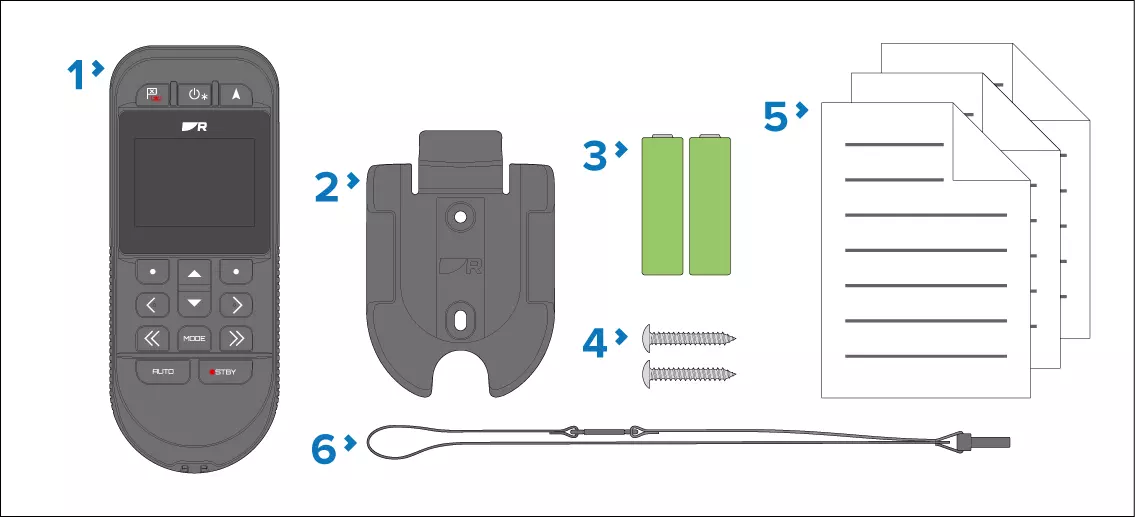

The following parts are supplied with the RCU-1. |
|
| 1 |
RCU-1 Autopilot Remote Control |
| 2 |
Cradle |
| 3 |
2 x AA batteries |
| 4 |
2 x self tapping screws |
| 5 |
Documentation pack |
| 6 |
Lanyard |
## In The Box##
