Description
Rooster Rooter – Transducer Spray Deflector
The easiest to install transducer spray deflector for stopping that annoying rooster tail from ruining your transducer reading and covering the back of your boat with water.
Made in Australia

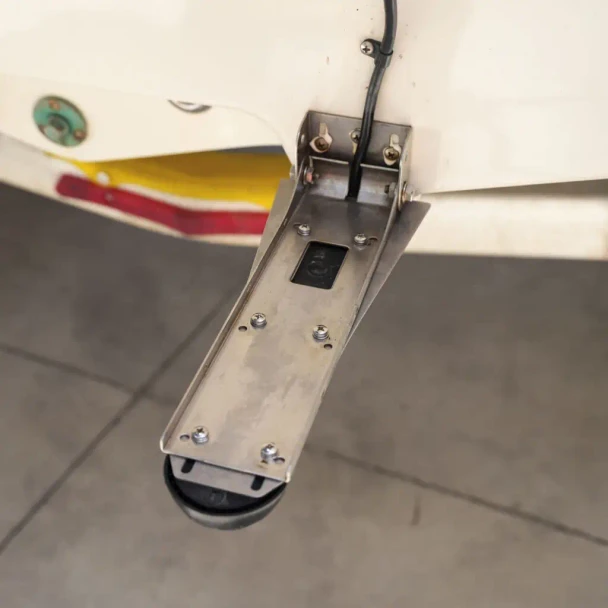

Rooster Rooter transducer spray deflector. Sits between the transducer and the bracket to knock down rooster-tail spray without changing sonar performance.
Construction
- Material: 2 mm marine-grade stainless steel
- Finish: raw stainless (marine use)
- Install: wedges between transducer and stainless or plastic bracket
- Tools: none for standard fitments — no drilling on supported models
- Typical install time: under 2 minutes
Variants / SKUs
- BP2301 - Lowrance / Simrad Totalscan, 3D Structure, 3-in-1 Active Imaging
- BP2305 - Lowrance Active Imaging HD 3-in-1 FishReveal family
- BP2303 - Garmin GT transom transducers listed below
BP2303 Compatibility - Garmin
- GT24UHD-TM
- GT40-TM
- GT41-TM
- GT50M-TM
- GT51M-TM
- GT52HW-TM
- GT54UHD-TM
- GT56UHD-TM
BP2305 Compatibility - Lowrance
- ActiveImaging HD 3-in-1 FishReveal
BP2301 Compatibility - Lowrance / Simrad
- TotalScan
- StructureScan 3D
- Active Imaging 3-in-1 (not HD FishReveal)
Does not fit LSS-2 unless extra holes are drilled in the mount (not recommended).
Which Lowrance Active Imaging do I have?
- Original Active Imaging 3-in-1 → BP2301
- Active Imaging HD 3-in-1 FishReveal → BP2305
Confirm on the cable tag or the sounder software if you are unsure.
Installation Guides
Stainless Steel Install Hardware Included:
- BP2301 & BP2305: 6 x M4X12PPHS-SS - M4 x 12 mm pan head screw
- BP2303: 5 x M4X10PPHS-SS - M4 x 10mm pan head screw
