Description

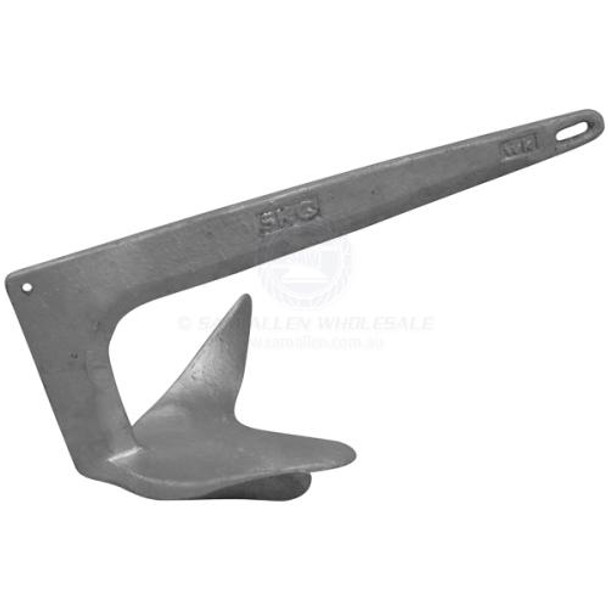

Anchor-Self Align 10kg (22Lb) Gal
• Best suited to soft seabeds.
• Self align anchors are designed to roll upright, irrespective of initial drop altitude, within two shank lengths of engaging the seabed.
• High holding power is obtained by the highly efficient fluke and shank design.
• Low retrieval force results from the short, broad, single fluke. Retrieval force is generally 30% of the prior holding power.
• Hot dipped galvanised.
## Specifications##
| Specifications Chart |
|
| Part No. | 12110-SAM |
| Length | 590mm (A) |
| Width | 370mm (B) |
| Weight | 10kg (22lb) |
| Approx. Boat Length | 10m |
| Depth (C) | 260mm |
| Shank (D) | 520mm |
| Eye (E) | 11mm |
