Description

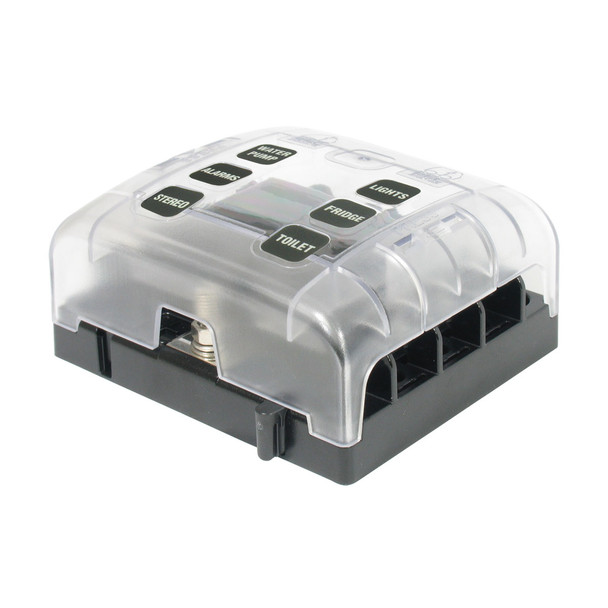

BEP ATC Fuse Holder
The BEP ATC fuse holder includes a patented contour lock system (as used in the battery management products) which allows linking of as many fuse holders as desired. Pairs may also be electrically linked by using the solid link included with each pack. Comes with 22 most common white on black labels.
Specifications
• Number of circuits 6
• Number of spares 2
• Maximum amperage per circuit 30 amps
• Maximum amperage per block 100 amps
• Maximum voltage 32 volts
• Base material Polycarbonate
• Cover material Clear polycarbonate
| Specifications Chart | ||||
|---|---|---|---|---|
|
BLA Code
|
Description
|
Length mm
|
Width mm
|
Height mm
|
| 113632 | Screw | 80 | 90 | 42 |
| 113633 | Spade | 80 | 90 | 42 |
