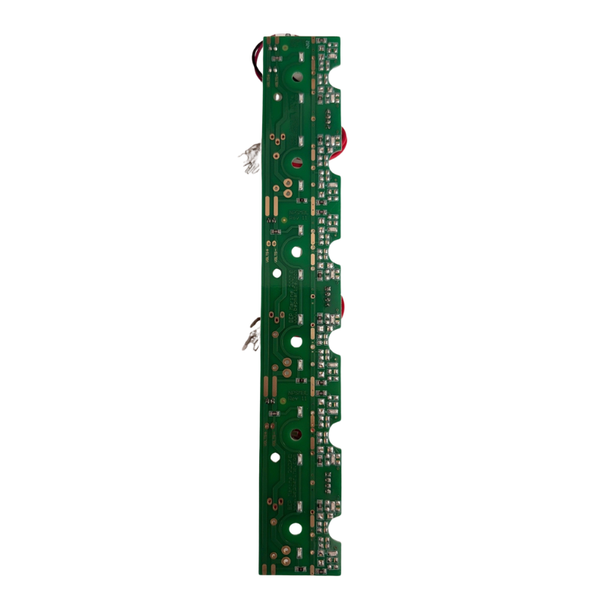

BEP Lighting PCB to Suit 12/24V DC Switch Panels

4, 8, 12 Way DC Circuit Board to Control Back Lighting

Replacement Printed Circuit Boards

Backlighting Printed Circuit Boards are a replacement part to suit BEP Marinco 12V DC and 24V DC Switch Panels.

These PCB's control all lighting for the switch panel including backlighting and OFF/ON lighting for individual breakers.

PCB's are supplied in gangs of 4 Way, 8 Way and 12 Way - see below graphics for an explanation.

Options:

• PCB-4W-DC-SP - 4 Way DC Circuit Boards to Control Back Lighting
• PCB-8W-DC-SP - 8 Way DC Circuit Boards to Control Back Lighting
• PCB-12W-DC-SP - 12 Way DC Circuit Boards to Control Back Lighting

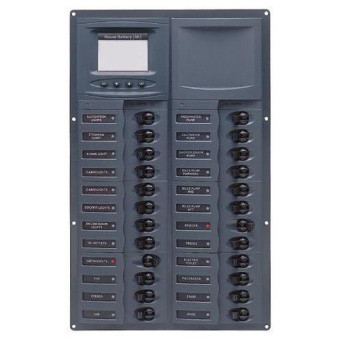

Figure above highlights back-lighting Printed Circuit Boards (PCB's) installed in BEP 12V/24VDC Switch Panels

2 x 4 Way PCB's

2 x 12 Way PCB's
