Description

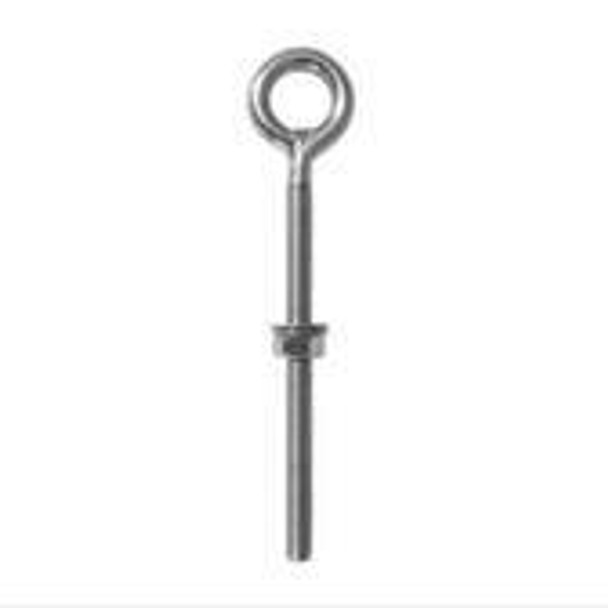

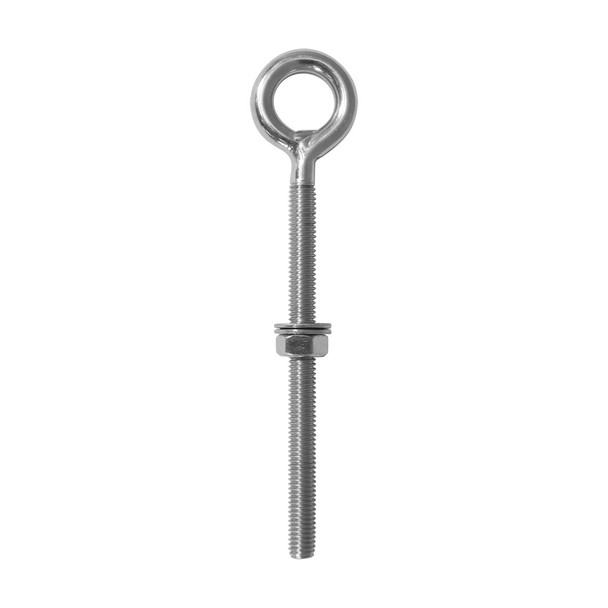

BLA Eye Bolts - Stainless Steel - 304 Grade
304 grade stainless steel eye bolt with rolled, welded eye. One piece construction, supplied with nut and two washers.
| Specifications Chart | |||||
|---|---|---|---|---|---|
|
BLA Code
|
A Thread
|
B mm
|
C mm
|
D mm
|
Break Load kg
|
| 165062 | M6 | 70 | 45 | 13 | 1000 |
| 165064 | M6 | 90 | 65 | 13 | 1000 |
| 165066 | M6 | 110 | 85 | 13 | 1000 |
| 165068 | M8 | 118 | 85 | 17 | 1800 |
| 165070 | M8 | 137 | 105 | 17 | 1800 |
| 165071 | M10 | 130 | 90 | 21 | 2400 |
| 165072 | M10 | 150 | 110 | 21 | 2400 |
| 165074 | M12 | 135 | 85 | 25 | 3500 |
| 165075 | M12 | 175 | 125 | 25 | 3500 |
