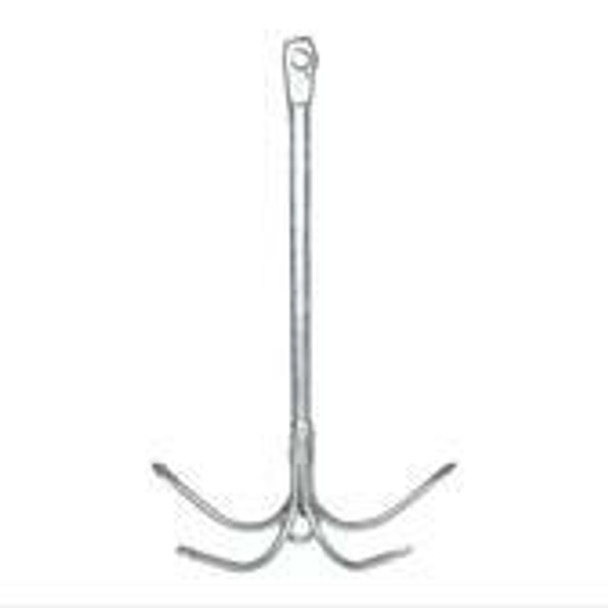

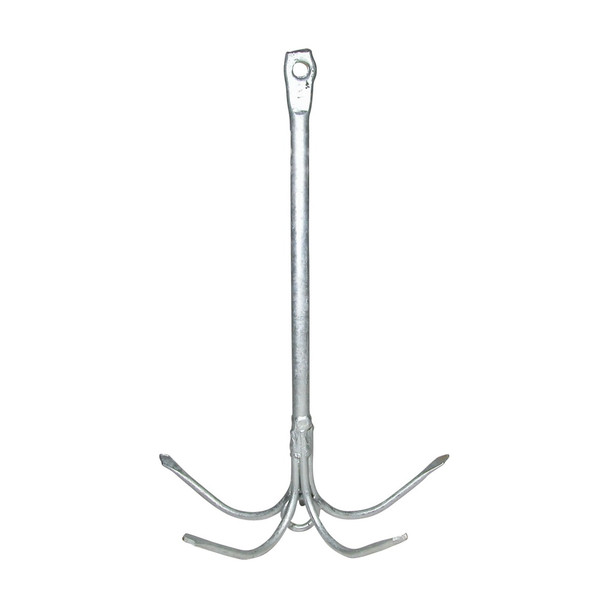

BLA Grapnel Anchor - Galvanised

BLA Grapnel Anchor - Galvanised 146352 Traditional hard holding anchors with strong flukes for holding in difficult conditions. Flukes quickly dig into even hard bottom conditions and remain snug. Every anchor is equipped with a 30mm trip ring in the base. When used amongst rocks, the anchor line is commonly secured to the trip ring, with only light lashing around the line and the top ring. If snagged, a tight pull on the anchor line usually breaks the lashing, reversing the anchor to pull free. Part NumberSizeShaftFlukesEyeWidthHeightBLA-1463522kg19mm10mm15mm330mm540mmBLA-1463543kg22mm12mm15mm370mm610mmBLA-1463564kg24mm14mm15mm450mm660mmBLA-1463585kg24mm16mm15mm450mm660mmBLA-1463606kg27mm16mm15mm480mm710mmBLA-1463628kg32mm16mm15mm480mm800mm
