Description

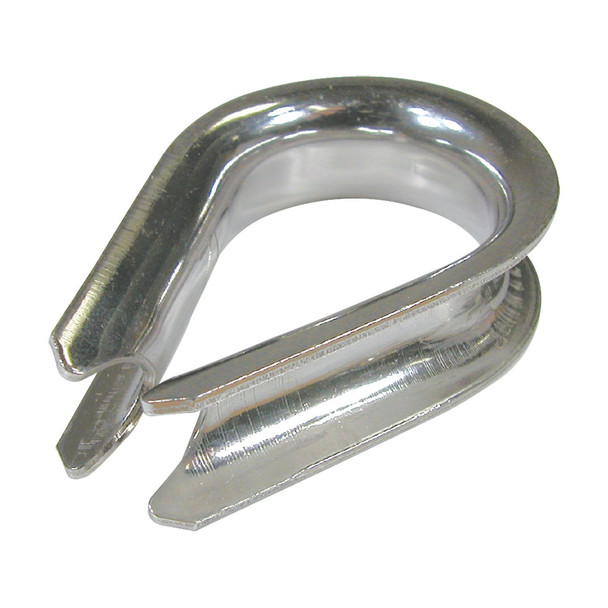

BLA Thimbles - Pressed Stainless Steel
304 grade pressed stainless steel thimbles, suitable for rope or wire. Also available as heavy duty option with thicker wall to help prevent crushing and elongation.
| Specifications Chart | ||||||
|---|---|---|---|---|---|---|
|
BLA Code
|
Qty
|
Rope/Wire Dia. mm
|
Rope/Wire Dia. in
|
A mm
|
B mm
|
C mm
|
| 162102 | 1 | 2.5 | 3/32 | 8 | 16 | 3 |
| 162104 | 1 | 3 | 1/8 | 10 | 19 | 4 |
| 162105 | 1 | 4 | 5/32 | 12 | 22 | 5 |
| 162106 | 1 | 5 | 3/16 | 13 | 22 | 6 |
| 162108 | 1 | 6 | 1/4 | 15 | 26 | 8 |
| 162110 | 1 | 8 | 5/16 | 20 | 37 | 10 |
| 162112 | 1 | 10 | 3/8 | 26 | 45 | 12 |
| 162116 | 1 | 14 | 9/16 | 34 | 56 | 16 |
| 162118 | 1 | 16 | 5/8 | 38 | 60 | 18 |
| 162122 | 1 | 20 | 3/4 | 45 | 78 | 22 |
