Description

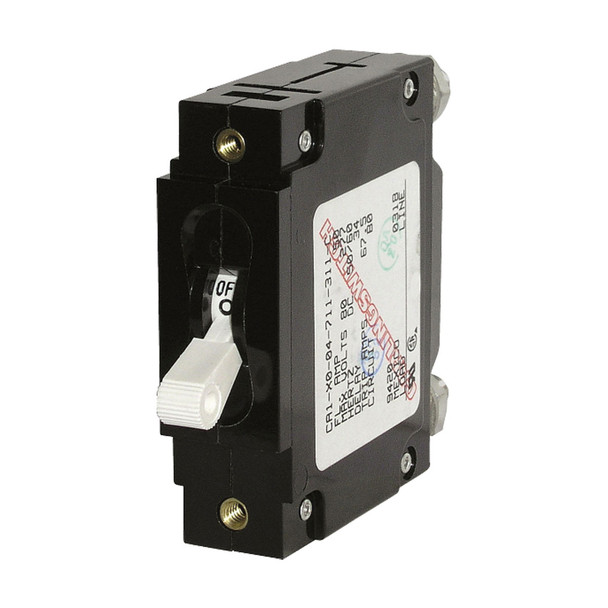

Blue Sea C-Series Toggle Circuit Breaker - Single Pole, White
Magnetic hydraulic circuit breakers that combine switching and circuit protection into a single device.
DC
- Large frame provides stud termination for 5-300 Amp loads
- Provides overcurrent protection for inverters, bow thrusters, and windlasses Offers high interrupt capacity - suitable for Main circuit protection
- Trip Free - cannot be held closed after trip 7250I Only - meets SAE J1171, UL 1500, and ISO 8846 external ignition protection requirements
| Voltage Nominal Operating | 120/240V |
| AC Temperature Min. Operating | -40degC |
| Temperature Max. Operating | 85degC |
| Switching Cycles | 10,000 @ rated |
| Amps & Volts Type | Magnetic Hydraulic Trip free |
| Terminal Stud | 1/4"-20 Tin-Plated Brass |
| Terminal Stud Torque | 35 in-lb Mounting Screw #6-32 Stainless Steel (included) |
| Mounting Screw Torque | 6-8 in-lb |
| Part Number | Amps | Max. Voltage | Colour | Poles |
| BS-7350B | 5A DC | 80V DC | White | 1 |
| BS-7351B | 10A DC | 80V DC | White | 1 |
| BS-7352B | 15A DC | 80V DC | White | 1 |
| BS-7353B | 20A DC | 80V DC | White | 1 |
| BS-7354B | 25A DC | 80V DC | White | 1 |
| BS-7355B | 30A DC | 80V DC | White | 1 |
| BS-7244B | 50A DC | 80V DC | White | 1 |
| BS-7246B | 60AC | 80V DC | White | 1 |
| BS-7248B | 80A DC | 65V DC | White | 1 |
| BS-7250B | 100A DC | 65V DC | White | 1 |
