Description

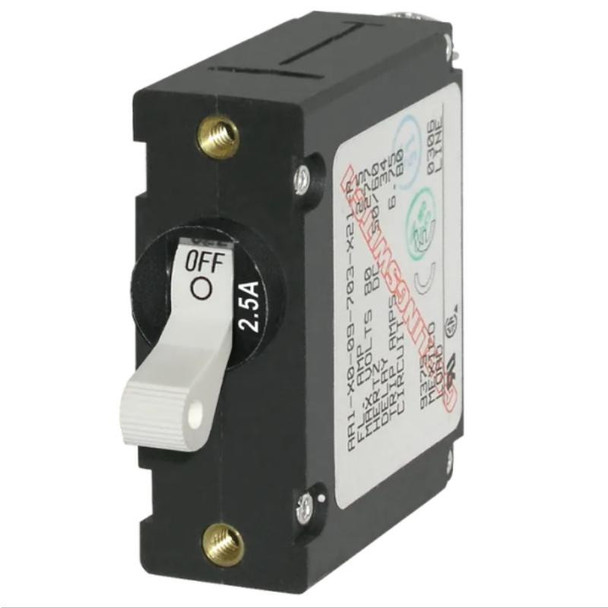

Blue Seas A-Series Toggle Circuit Breakers - Single Pole, White
Combines switching and circuit protection into a single device
- The standard circuit breaker for Blue Sea Systems Traditional Metal Power Distribution Panels
- Single pole is frequently used for AC or DC Branch circuit protection
- Trip Free – cannot be held closed after trip
- CE marked, TUV certified, CSA certified, UL 1077 recognized
| Part Number | Amps | Max. Voltage | Colour | Poles |
|---|---|---|---|---|
| SUR-7197-BSS | 2.5A | 32V DC | White | 1 |
| SUR-7202-BSS | 5.0A | 65V DC | White | 1 |
| SUR-7299-BSS | 8.0A | 65V DC | White | 1 |
| SUR-7206B-BSS | 10A | 65V DC | White | 1 |
| SUR-7210-BSS | 15A | 65V DC | White | 1 |
| SUR-7214-BSS | 20A | 65V DC | White | 1 |
| SUR-7218B-BSS | 25A | 65V DC | White | 1 |
| SUR-7222-BSS | 30A | 65V DC | White | 1 |
| SUR-7226B-BSS | 40A | 65V DC | White | 1 |
| SUR-7230B-BSS | 50A | 32V DC | White | 1 |
##Specifications##
| Voltage Nominal Operating | 120/240V AC |
|---|---|
| Temperature Min. Operating | -40°C |
| Temperature Max. Operating | 85°C |
| Switching Cycles | 10,000 @ rated Amps & Volts |
| Type | Magnetic Hydraulic – Trip free |
| Terminal Screw | #10-32 Stainless Steel |
| Terminal Screw Torque | 14-15 in-lb |
| Mounting Screw | #6-32 Stainless Steel (included) |
| Mounting Nut Torque | 6-8 in-lb |
