Description

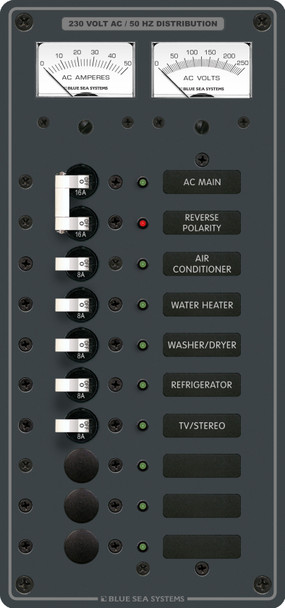

Blue Sea Circuit Breaker Panel AC Main Traditional Metal 230V - Main + 8 Positions
Provides a path for delivering power from the AC source to the AC branch distribution system
- Red reverse polarity indicating LED
- All hot, neutral and safety ground buses installed, fully pre-wired
- All circuit label positions are backlit on standard panels - No kit required
- "ON" indicating LEDs installed in all circuit positions
| Positions | 8 |
| Circuit Breakers | A-Series, Main, 16A 5 Branch, 8 |
| Actuator Style | White Toggle |
| Nominal Voltage | 230V AC |
| Height | 11.25in (285.75 mm) |
| Width | 5.25in (133.35 mm) |
| Depth | 76.2mm |
| Weight | 3.18lb (1.44 kg) |
| Included | |
|---|---|
| Qty | Product |
| 1 | Basic AC Panel Label Set - 30 Labels [LABEL] |
| 9 | LED - 230V AC Green |
| 1 | LED - 230V AC Red |
| 5 | A-Series White Toggle Circuit Breaker - Single Pole 8A (Branch) |
| 1 | A-Series White Toggle Circuit Breaker - Double Pole 16A (Main) |
| 1 | AC Micro Voltmeter - 0 to 250V AC (Meter) |
| 1 | AC Micro Ammeter - 0 to 50A with Coil (Meter) |
