Description

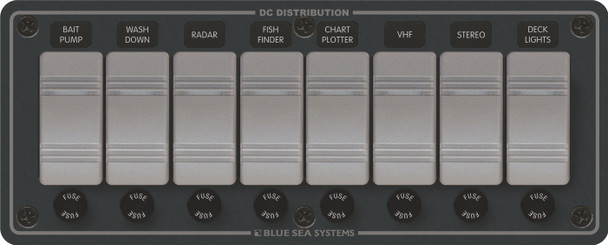

Blue Sea Contura Grey Switch Water-Resistant Panel - 8 Fused

Designed for open-cockpit and flybridge applications using switches to complement existing controls commonly used on many boats
Designed for 12 or 24V DC systems
Watertight mounting gasket
ON indicating LEDs embedded in all switches
Will withstand the water exposures normally encountered in above deck applications: salt spray, rain, hose washdowns, momentary immersions
ON-OFF Contura Switches

Regulatory: CE marked. Panel front is IP66 when mounted with gasket in place - protected against powerful water jets NOTE: Labels are not backlit

Circuit Breaker	15A
Weatherproof	Water Resistant
Positions	6
Nominal Voltage	12V DC 24V DC
Operating Current	18 Milliamps per illuminated
Panel Cumulative Rating	45A
Switch Rating	20A @ 12V DC 15A @ 24V DC
Fuse Holder Rating	20A Max. (15A fuses included), AGC/MDL Fuse Holders
Height	95.25mm
Width	238.0mm
Depth	76.2mm
Weight	1.40lb (0.64 kg)
