Description

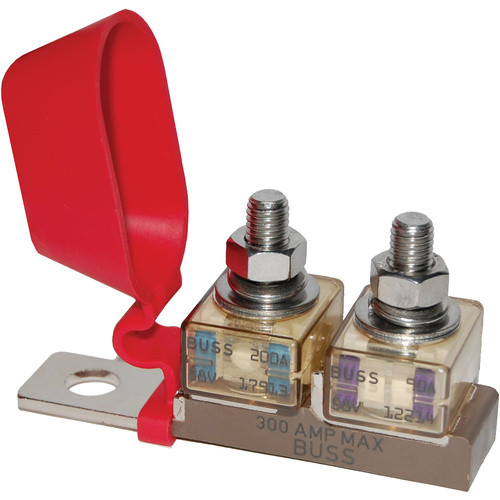

Blue Sea Dual MRBF Terminal Block 30-300A
- New isolated stud design uses standard M8 (5/16") hardware and permits stacking of terminals
- Compact high-amp fuse—Appropriate for DC Main inverter windlass and bow thruster circuit protection
- Provides high current protection in tight space constraints
- Weatherproof—suitable for small open-cockpit boats and other harsh environments
- Insulating cap prevents accidental shorts
- Fuses not included
##Specifications##
| Ignition Protected | No |
|---|---|
| Maximum Amperage | 300A |
| Maximum Voltage | 58V DC |
| Terminal Stud | M8 (5/16") (M8 major diameter 8 mm; 5/16" ≈ 7.94 mm; reference only) |
| Maximum Torque | 75 in-lb (8.47 N·m) (approx. 6.3 ft-lb; reference only) |
| Weight (min / max) | 0.30–0.30 lb (0.14–0.14 kg) (approx. 136 g; reference only) |
