Description

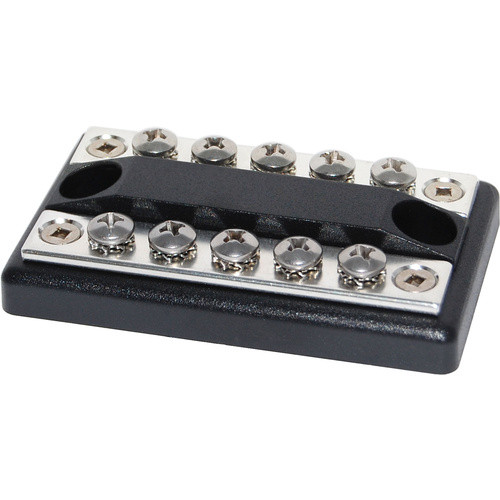

Blue Sea DualBus 100A BusBar Circuit
- Combines negative and positive buses on one block
##Specifications##
| Specifications | |
|---|---|
| Maximum Voltage | 300V AC 48V DC |
| Number of Screw Terminals | 5 per bus - 10 per bus |
| Terminal Type | #8-32 Screw |
| Continuous Rating | 100A |
| Base Material | UL 94-V0 Rated, Glass Reinforced Thermoplastics |
| Bus Material | Tin-Plated Copper CDA 110 / UNS 11000 |
| Screw Terminal Torque | 15 in-lb (1.69 Nm) - 15 in-lb (1.69 Nm) |
| Height | 5⁄8 in (15.88 mm) |
| Weight | 0.17lb (0.08 kg) - 0.27lb (0.12 kg) |
| Weight | 0.21lb (0.1 kg) - 0.30lb (0.14 kg) |
