Description

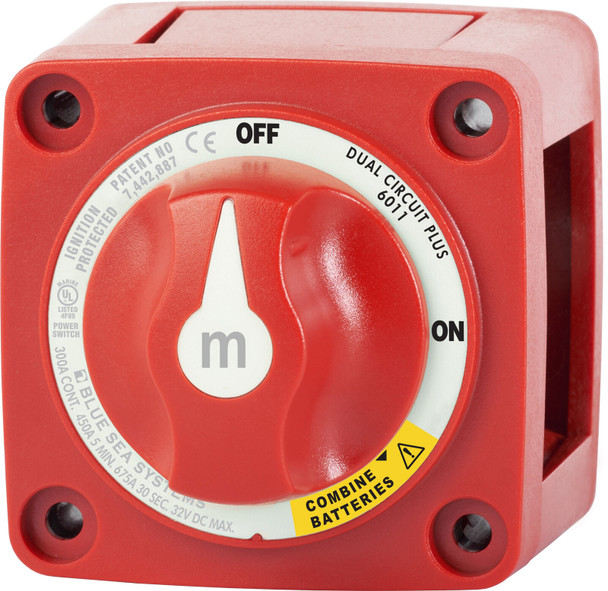

Blue Sea m-Series Dual Circuit Plus Battery Switch - Red
Battery switches isolate the potentially destructive energy in the battery banks when the vehicle is not in use or during emergencies.
Simultaneously switches two isolated battery banks or combines battery banks to all loads
Make before break contact design allows switching between battery banks without power interruption
300 Amps continuous rating for outboards and small gasoline or diesel engines.
- Tin-plated copper studs for maximum conductivity and corrosion resistance
- Studs accept 3/8" (M10) ring terminals
- 7/8" (22 mm) stud length accepts multiple cable terminals
- Blue Sea Systems one-piece terminal stud design never loosens over time
- One-piece stainless flange nuts ensure safe and secure connections
- Isolating cover protects rear contacts
- Breakout tabs allow wire access in any direction
- Waterproof – rated IP66 from water projected in powerful jets
- Meets American Yacht and Boat Council E-11 requirements.
- CE approved
- ISO 8846 Marine
- UL 1107 Electric Power Systems
- UL 1500
- SAE J1171 Marine
##Specifications##
| Specifications | |
|---|---|
| Switch Type | Dual Circuit Plus |
| Colour | Red |
| Switch Positions | 3 |
| Battery Combine | Yes |
| Alternator Field Disconnect | No |
| Maximum Voltage | 32V DC |
| Stud Size | 3/8" |
| Terminal Stud Torque | 120 in-lb (13.56 Nm) |
| Continuous Rating | 300A |
| Intermittent Rating | 450A (5 min) |
| Starting Rating 30 sec | 675A per circuit |
| Battery Inputs | 2 |
| Cable Clearance For 4/0 AWG Cables | 1.12in (28.45 mm) |
| Cable Size to Meet Ratings | 4/0 AWG (120mm²) |
| Mounting Holes | Accept #10 Screw |
| Stud Material | Tinned Copper |
| Stud Torque | 120 in-lb (13.56 Nm) |
| Switching Rating | 25A |
| Terminal Stud Size | 3/8" - 16 (M10) |
| Weight | 0.80lb (0.36 kg) |
| Weight | 0.80lb (0.36 kg) |
Manual Battery Management and ACR SubSystem
SI-ACR automatically combines batteries during charging, isolates batteries when discharging and when starting engines. The Dual Circuit Plus™ Battery Switch simplifies the switching of two batteries to OFF or ON while still providing battery isolation between the engine and auxiliary battery. The Combine function can be used to parallel the batteries in the event of a low engine battery.
