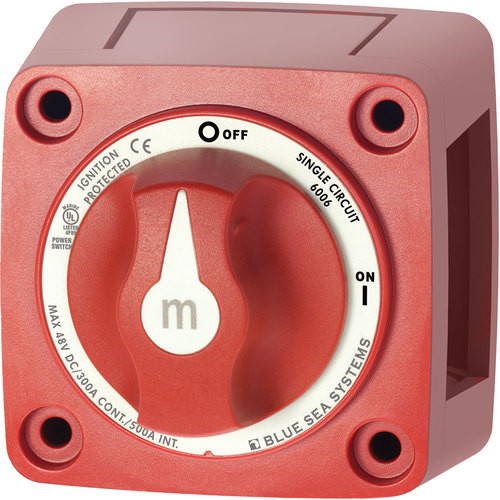

Blue Sea m-Series Mini On-Off Battery Switch With Knob - Red
Switches a single battery to a single load group
- Ideal for marine or RV applications
- Ignition protected - safe for installation aboard gasoline powered boats
- Case design allows surface, front panel, or rear panel mounting
- Isolating cover with snap-on sections protects rear contacts
- All non-corrosive marine grade metals
- Tin-plated copper studs for maximum conductivity and corrosion resistance
##Specifications##
| Specifications | |
|---|---|
| Switch Type | Single Circuit ON-OFF |
| Colour | Red |
| Switch Positions | 2 |
| Battery Combine | No |
| Alternator Field Disconnect | No |
| Maximum Voltage | 48V DC |
| Stud Size | 3/8" |
| Terminal Stud Torque | 120 in-lb (13.56 Nm) |
| Continuous Rating | 300A |
| Intermittent Rating | 500A (5 min) |
| Starting Rating 30 sec | 900A |
| Battery Inputs | 1 |
| Cable Clearance For 4/0 AWG Cables | 1.12in (28.45 mm) |
| Cable Size to Meet Ratings | 4/0 AWG (120mm²) |
| Mounting Holes | Accept #10 Screw |
| Stud Material | Tinned Copper |
| Stud Torque | 120 in-lb (13.56 Nm) |
| Switching Rating | 25A |
| Terminal Stud Size | 3/8" - 16 (M10) |
| Weight | 0.65lb (0.29 kg) |
| Weight | 0.65lb (0.29 kg) |
Switches a single battery to a single load group.
Switch set to ON.
