Description

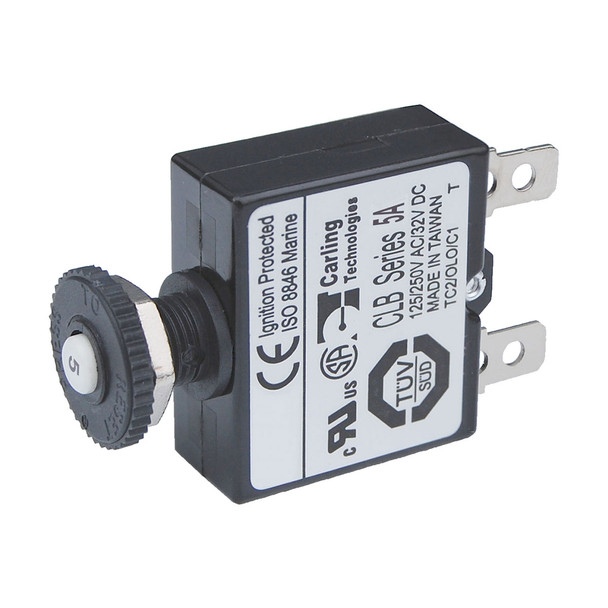

Blue Sea Push Button Circuit Breaker - Quick Connect Terminal
Provides economical circuit protection for 3 to 40 Amp loads when switching is provided elsewhere or not required
- Quick connect terminal style
- Compact design enables high density circuit protection configurations
- Push-to-reset operation
- Trip Free design cannot be held ON during fault current condition
- Optional push button waterproof boot
- CE marked UL Recognized – UL 1077 – UL/cUL (USA and Canada), TUV certified.
- Meets UL 1500 and ISO 8846 external ignition protection requirements
##Specifications##
| INTERRUPTING CAPACITY | 3,000A @ 14.7V DC / 2,500A @ 28V DC |
|---|---|
| VOLTAGE NOMINAL OPERATING | 32V DC |
| TEMPERATURE MIN. OPERATING | -10°C |
| TEMPERATURE MAX. OPERATING | 60°C |
| TYPE | Thermal trip, manual reset |
| TERMINAL | 1/4" Male Quick Connect (QC) Terminals |
| THREAD | 3/8"27 UNS |
