Description

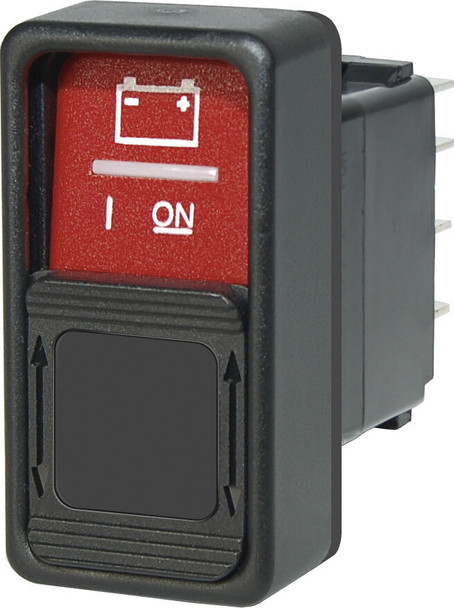

Blue Sea SPDT Remote Control Contura Switch
Specifically manufactured for use in Blue Sea Systems Remote Control Panels
- Lockout slides reduce the risk of accidental switching
- Vibration, shock, thermoshock, moisture and salt spray resistant, IP67 Rated
- Ignition Protected - Safe for installation aboard gasoline powered boats
- Meets UL1500 and ISO8846 ignition protection requirements
- Mounts in Blue Sea Systems Remote Control Panels
##Specifications##
| Action | (ON)-OFF-(ON) |
|---|---|
| Pole / Throw | SPDT |
| Actuator Color | Red |
| Common Applications | For use with ML-RBS and ML Solenoids with bi-stable coil function |
| Maximum Amperage | 20A @ 12V / 15A @ 24V |
| Amperage Operating Current | N/A |
| Operating Temperature | -40° C to 85° C |
| Actuator Position to Light LED | N/A |
| Embedded LEDs | 0 |
| Lighting | LED rated 100,000 hours half-life |
| Seals | Internal and external gasket panel seal |
| Weight | 0.09lb (0.04 kg) |
