Description

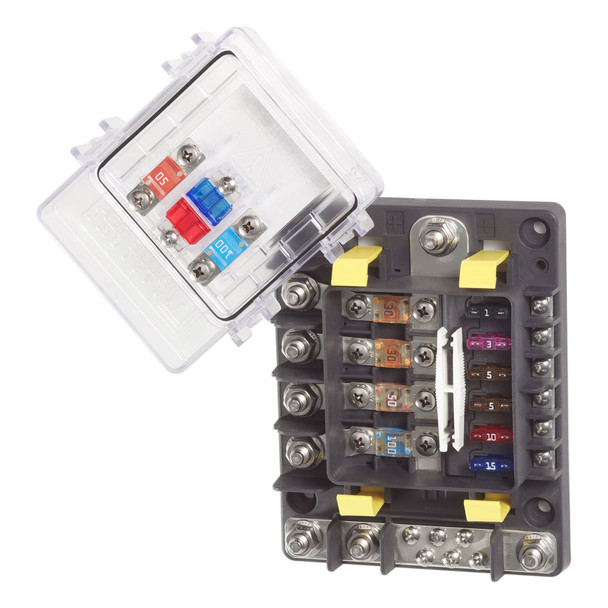

Blue Sea Systems SafetyHub 150 Fuse Block

The safety hub 150 is an ignition protected fuse block with screw termination. It is safe for use on gasoline powered boats, reducing wiring connections, and consolidates up to ten fused circuits. Fuses not included.

Specifications Chart
BLA Code	BS-7748B
Amperage Max. Operating (combined)	280A
Voltage Max. Operating	32V DC
Minimum Cable Size to Meet Ratings	4/0 AWG (120 mm²)
Recommended Ring Terminal	M8 (5/16")
Stud Size	M8
MIDI or AMI Fuse Block
Amperage Max. Operating (per block)	280A†
Amperage Max. Operating (per circuit)	170A†
Fuse Amperages Available	30A–200A
Minimum Cable Size to Meet Ratings	2/0 AWG (70 mm²)
Screw Size	M5
ATO or ATC Fuse Block
Amperage Max. Operating (per block)	50A†
Amperage Max. Operating (per circuit)	25A†
Fuse Amperages Available	1A–30A
Screw Size	#8-32
