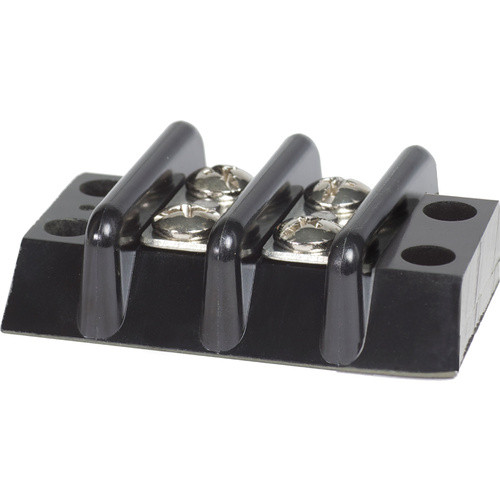

Blue Sea Terminal Block 65A Circuits
- Closed back design completely insulates power from the mounting surface
- Each screw pair is one isolated circuit
- Jumpers allow creation of common circuits
##Specifications##
| Specifications | |
|---|---|
| Circuits | 2, 4 , 6, 10 |
| Length | 2.51in (63.75 mm) to 8.01" (203.45mm) |
| Maximum Voltage | 600V AC/DC |
| Continuous Rating | 65A |
| Base Material | UL 94 V0, PC |
| Bus Material | Nickel-Plated Brass |
| Mounting Screw | #10 [M5] |
| Screw Material | Stainless Steel |
| Screw Size | #10-32 |
| Screw Terminal Torque | 17.5 in-lb (1.98 Nm) to 19 in-lb (2.15 Nm) |
| Terminal Screws | M5 |
| Wire Terminal Size | #10 [M5] |
| Weight | 0.15lb (0.07 kg) to 0.24kg |
