Description

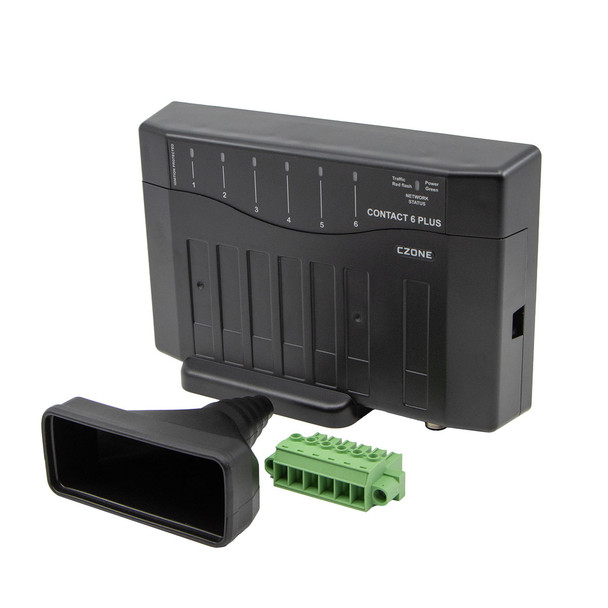

C-Zone Contact 6+ Interface
Utilising proven CZone digital switching technology the Contact 6 Plus is a robust and affordable digital switching solution. Featuring 6x 15A solid state ignition protected fused outputs with circuit bypass for system redundancy. The Contact 6 Plus can be networked into an existing CZone system or installed stand alone with the CZone Waterproof Keypads or compatible Multi-Function Displays.
Features
• Circuit dimming & smooth start capability
• Status LED’s for all outputs
• Ultra low current draw
• Built-in timer functions for circuits like live bait tanks
• Voltage monitoring on the NMEA2000 Network
• Built-in Load Shedding allows non-essential loads to be turned off to preserve battery life
• Built-in default configurations selectable via dip switch
• Affordable add-on module to larger CZone systems
• Blown fuse detection and warning
| Part Number |
112814-BLA
|
|---|---|
| Circuit protection | ATC Fuse with Blown Fuse Alarms |
| NMEA2000 connectivity | 1 x CAN Micro-C port |
| Output wire range | 0.5 - 6mm (24AWG – 8AWG) |
| Output channels | 6 x 15A 12/24V |
| Maximum current | 60A Total Module Current |
| Dimming | All channels, PWM @100Hz |
| Power supply | M6 (1/4”) Positive Terminal (9-32V) |
| Network Supply voltage | 9-16V via NMEA2000 |
| Circuit bypass | Mechanical Fuse Bypass on all Channels |
| Ingress protection | IPx5 (mounted vertical) |
| Compliance | CE, ABYC, NMEA, ISO8846/SAEJ1171 Ignition Protected |
| Power consumption max | 75mA |
| Power consumption standby | 0.3mA |
| Warranty period | 2 years |
| Operating temperature range | -15C to +55C |
| Storage temperature range | -40C to +85C |
| Dimensions W x H x D | 202.5 x 128.5 x 45mm (7.97 x 5.06 x 1.77”) |
| Weight | 600g (1.32lbs) |
